| Product Name | High Grade Pure Zinc Wire (Zn 99.995%) |
|---|---|
| Diameter | 0.5mm β 8.0mm |
| Purity | Zn 99.95% / 99.99% / 99.995% |
| Package | Spool (5-25kg) / Coil (50-200kg) / Drum (200-500kg) |
| Tensile | 100-150 MPa (soft annealed) |
| Standard | ASTM B833, EN 1179, GB/T 470 |
| Grade | Zn 99.995% SHG, Zn 99.99%, Zn 99.95% |
| MOQ | 200kg |
High-grade pure zinc wire (Zn 99.995%) is produced from SHG (Special High Grade) zinc ingots through continuous casting and cold drawing processes. The wire offers excellent ductility and consistent diameter for thermal spray (metallizing), arc spray, and flame spray applications providing sacrificial corrosion protection to steel structures.
Available in precision-wound spools for automated thermal spray guns, coils for flame spray torches, and bulk drums for high-volume industrial metallizing. The 99.995% purity ensures optimal spray performance with minimal nozzle clogging and superior coating adhesion.
| Attribute | Specification |
|---|---|
| Product Name | High Grade Pure Zinc Wire |
| Diameter | 0.5mm β 8.0mm (Β±0.02mm tolerance) |
| Purity Grade | Zn 99.95% / Zn 99.99% / Zn 99.995% (SHG) |
| Package Types | Precision spool (5-25kg), coil (50-200kg), drum (200-500kg), pay-off pack |
| Tensile Strength | 100-150 MPa (soft annealed), 150-200 MPa (half-hard) |
| Elongation | β₯30% (soft), β₯15% (half-hard) |
| Standard | ASTM B833, EN 1179, ISO 14919, GB/T 470, AWS C2.25/C2.25M |
| Surface | Bright, smooth, free from oxide, oil-free (no cleaning required before spray) |
| Inspection | Diameter (laser micrometer), tensile test, chemical analysis (OES), surface inspection, spool winding quality check |
| Application | Thermal spray metallizing (arc/flame/plasma), sacrificial anodes, hot-dip galvanizing additive, vacuum metallizing, zinc-rich paint pigment, EDM wire |
| MOQ | 200kg |
| Supply Ability | 1,000+ Tons/month |
| Delivery Time | 7β15 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 certified. Chemical analysis per heat (OES), continuous laser diameter monitoring, tensile testing per ASTM E8. Certificate of Analysis with each shipment.

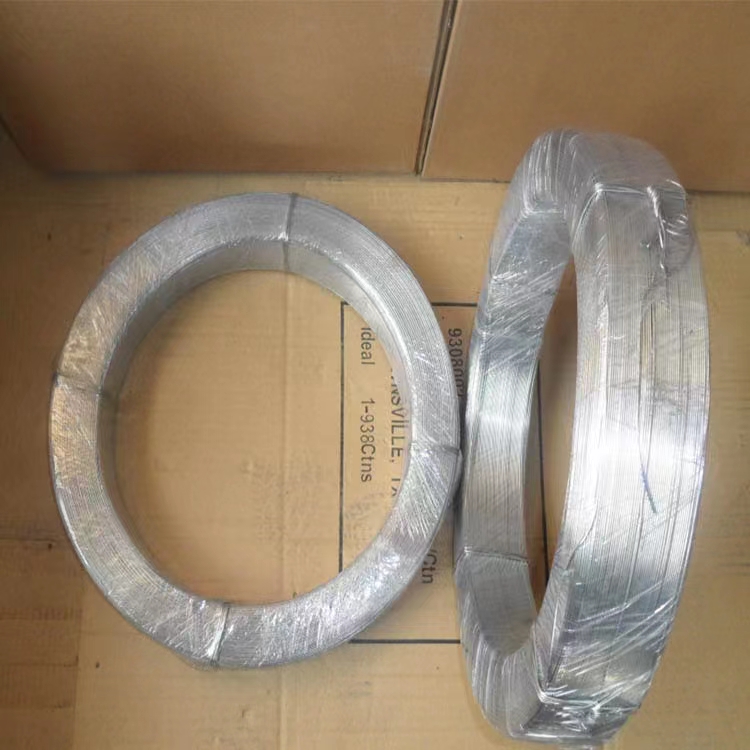

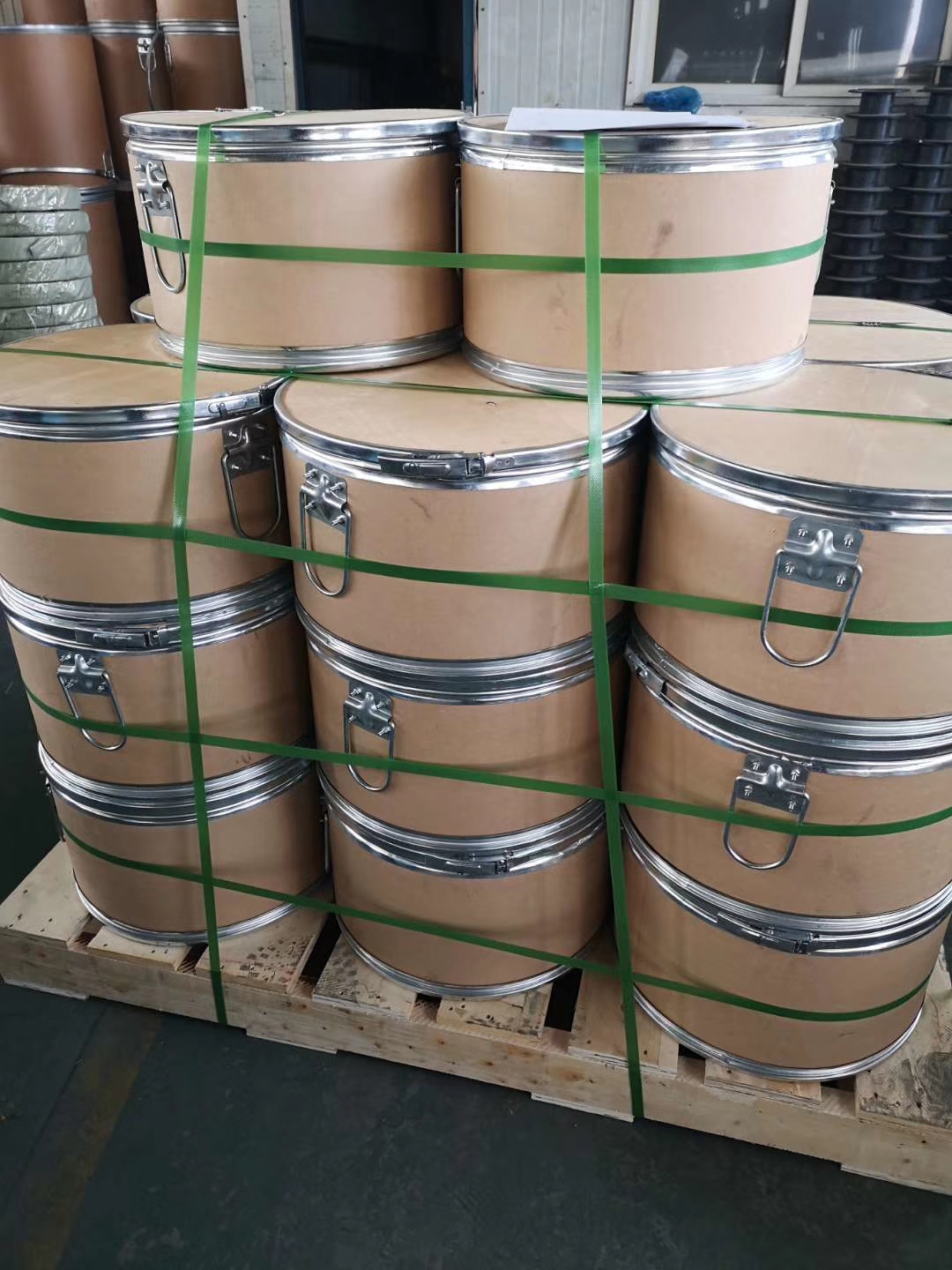

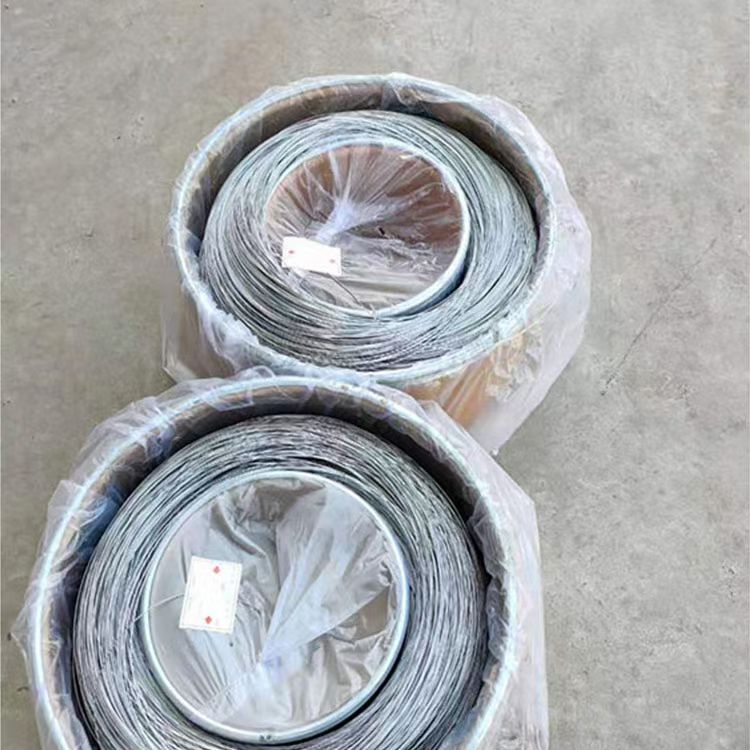

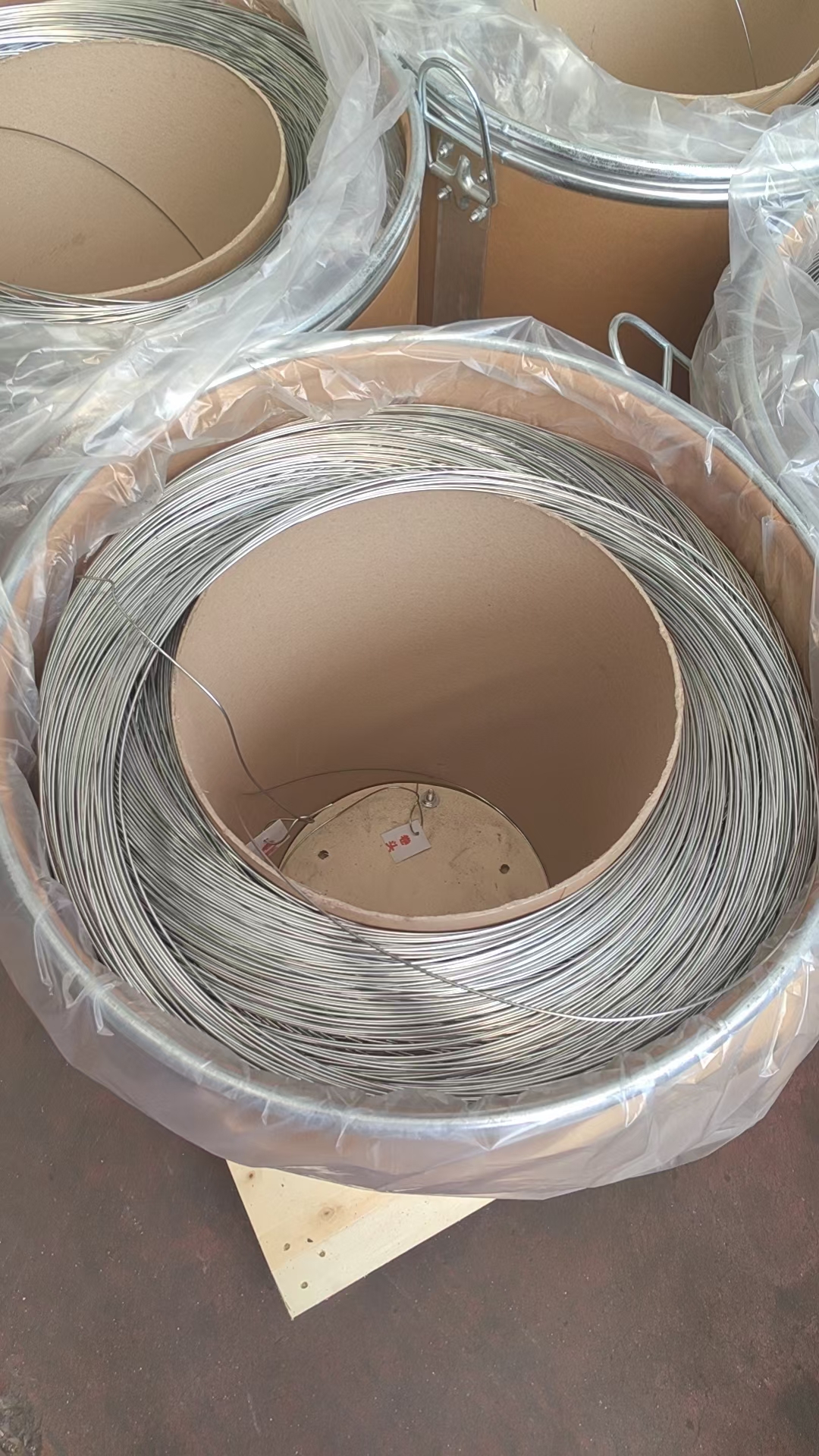

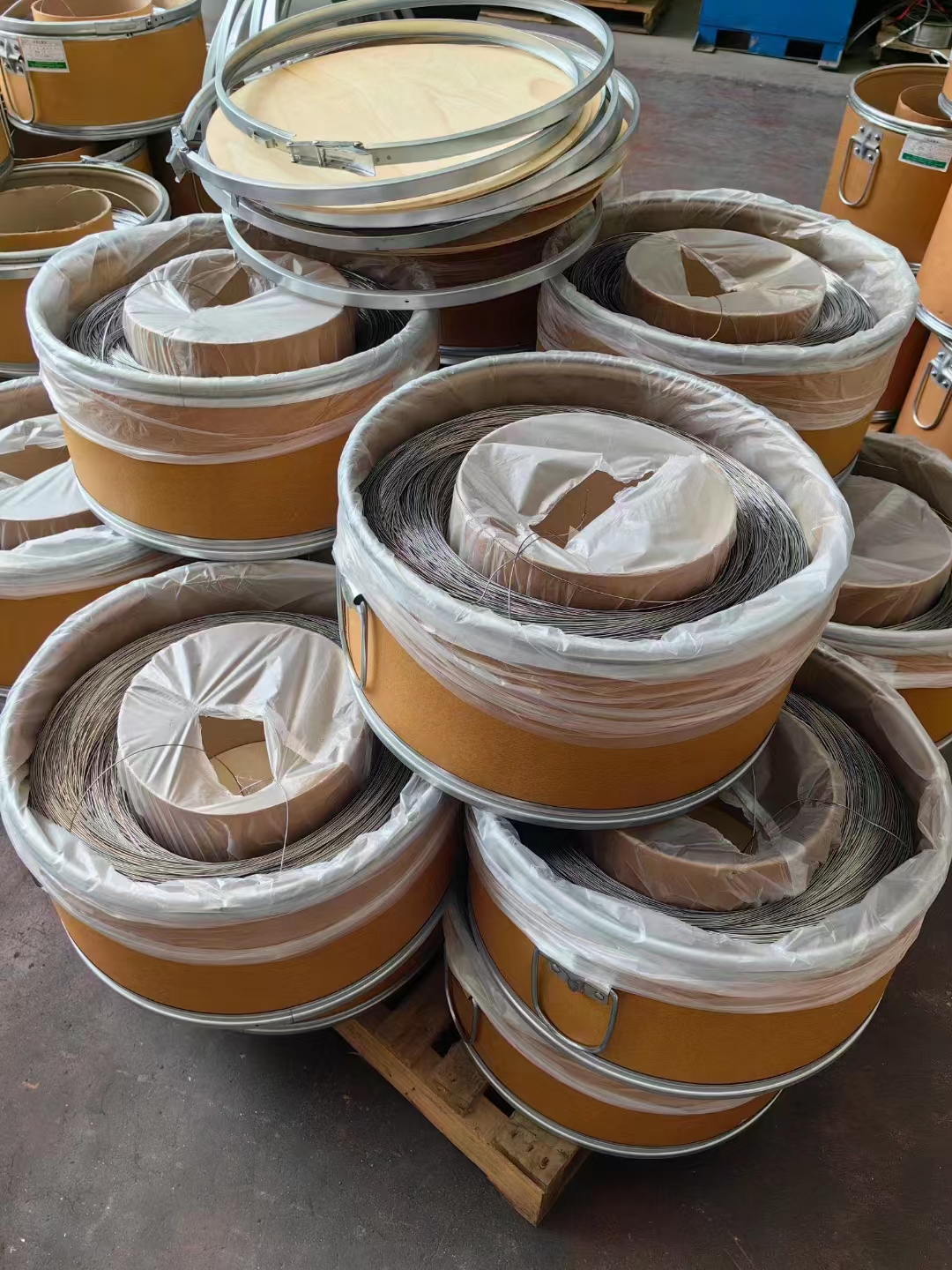

Packaging: Spools: plastic/wooden spools, individually boxed, 20-50 spools per carton on pallet. Coils: VCI paper + PE film, steel strapped. Drums: sealed steel/fiber drums. All packaging moisture-protected for sea freight with desiccant packs.
Send us your specifications and receive a quote within 24 hours.
