| Product Name | Pipe Tee (Equal / Reducing Butt Weld) |
|---|---|
| Size | DN15 β DN1200 (1/2" β 48") |
| WT | Sch5S β Sch160 / XXS |
| Type | Equal Tee / Reducing Tee / Barred Tee |
| Connection | Butt Weld (BW) / Socket Weld (SW) / Threaded (NPT) |
| Standard | ASME B16.9, ASME B16.11, EN 10253, MSS SP-75 |
| Material | Carbon Steel / Stainless Steel / Alloy Steel |
| MOQ | 10 pieces |

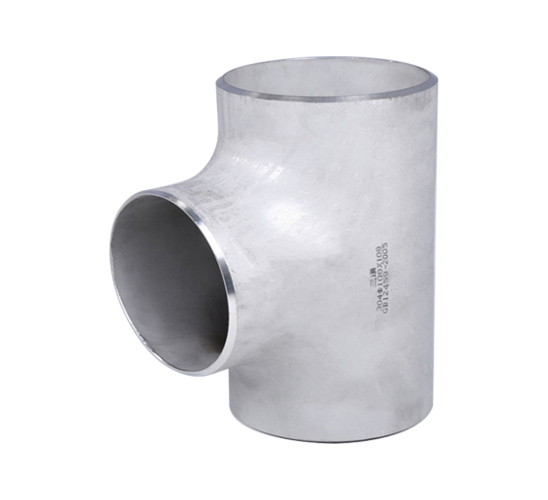

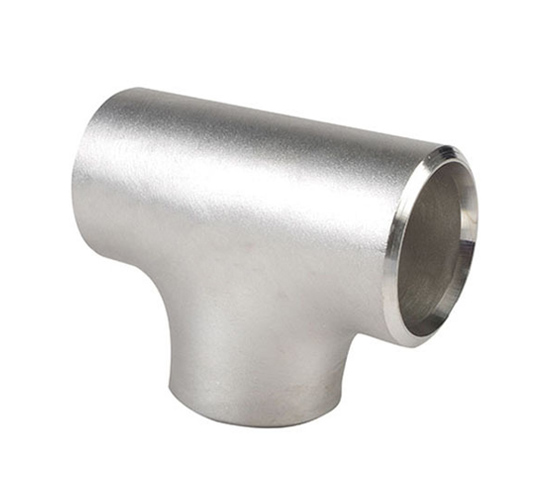

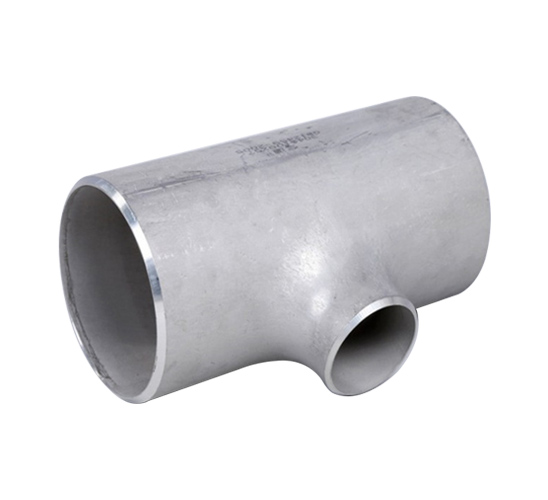

Pipe tees are T-shaped pipe fittings used to combine or split fluid flow in piping systems. Equal tees have all three branches of the same diameter. Reducing tees have the branch outlet smaller than the run pipe, used for making branch connections. Barred tees include internal bars to prevent pig passage for pipeline cleaning operations.

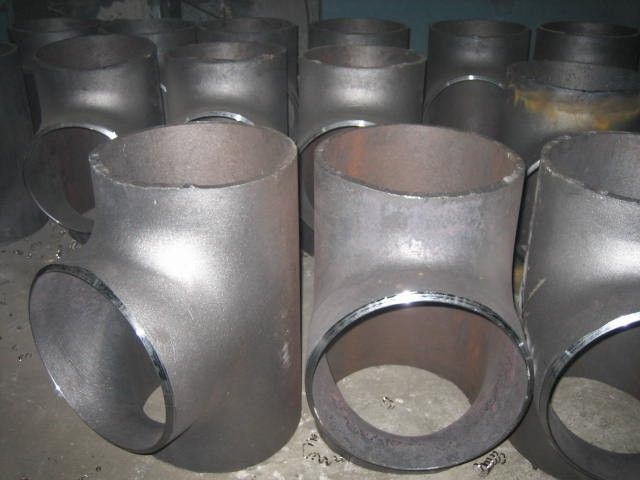

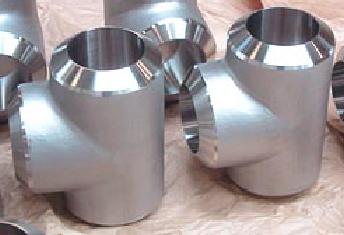

Butt weld tees are manufactured per ASME B16.9 from seamless or welded pipe through hot forming, with bevelled ends for field welding. Socket weld and threaded tees per ASME B16.11 are available for smaller bore sizes (up to DN50/2").
| Attribute | Specification |
|---|---|
| Product Name | Pipe Tee (Equal / Reducing) |
| Size Range | DN15 β DN1200 (1/2" β 48") |
| Wall Thickness | Sch5S, Sch10S, Sch20, Sch40/STD, Sch80/XS, Sch160, XXS |
| Type | Equal Tee (all ends same size), Reducing Tee (branch < run), Lateral Tee (45Β° branch), Barred Tee |
| Connection | Butt Weld BW (ASME B16.9), Socket Weld SW (β€DN50), Threaded NPT/BSPT (β€DN50) |
| Standard | ASME B16.9 (BW), ASME B16.11 (SW/Threaded), EN 10253-2/3/4, MSS SP-75 (high test), JIS B2311/2312, GB/T 12459 |
| Carbon Steel | ASTM A234 WPB/WPC, WPL6; 20#, Q235, 16Mn; STPG370/410 |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP310S, WP2205 (Duplex) |
| Alloy Steel | ASTM A234 WP11/WP22/WP5/WP9; 15CrMoG, 12Cr1MoVG |
| Inspection | PMI (100%), chemical (OES), mechanical (tensile, yield, hardness, impact), hydrostatic, UT/RT per order, dimensional (OD, WT, center-to-end), visual |
| Application | Oil & gas flowlines, chemical process piping, boiler & power piping, fire protection systems, water & wastewater, food processing, pharmaceutical CIP |
| MOQ | 10 pieces |
| Supply Ability | 8,000+ Pieces/month |
| Delivery Time | 5β15 days (stock); 15β30 days (production) |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 / PED certified. PMI (100%), chemical, mechanical, hydrostatic, dimensional, UT/RT. MTC EN 10204 3.1.
Packaging: Wooden pallets/crates, plastic end caps, anti-rust oil for CS, sorted by size/grade. Clear marking per MSS SP-25. Waterproof wrapping.
Send us your specifications and receive a quote within 24 hours.
