| Product Name | Hot-Dip Galvanized Scaffolding Steel Pipe |
|---|---|
| OD | 21.3mm β 219.1mm (1/2" β 8") |
| WT | 1.5mm β 8.0mm |
| Length | 5.8m / 6.0m / 6.4m (standard scaffolding) |
| Zinc Coating | Pre-galvanized (Z40-Z80) / Hot-dip galvanized (Z200-Z400 g/mΒ²) |
| Standard | ASTM A53, EN 39, BS 1139, JIS G3444, GB/T 3091 |
| Grade | Q195, Q235, Q345, S235GT, STK400, STK500 |
| MOQ | 2 Tons |
Hot-dip galvanized scaffolding steel pipes are manufactured from ERW (Electric Resistance Welded) carbon steel pipes that are subsequently immersed in a molten zinc bath to form a metallurgically bonded zinc coating on both internal and external surfaces. The hot-dip galvanizing process provides superior corrosion protection compared to pre-galvanized pipes, making them ideal for outdoor construction and scaffolding applications.
Available in standard scaffolding lengths (5.8m, 6.0m, 6.4m) with plain, threaded, or socketed ends. Widely used for: scaffolding systems (ringlock, cuplock, kwikstage), greenhouse structures, fence posts, handrails, water pipelines, fire protection systems, and structural support. All pipes conform to international scaffolding standards with full traceability.
| Attribute | Specification |
|---|---|
| Product Name | Hot-Dip Galvanized Scaffolding Steel Pipe |
| OD Range | 21.3mm β 219.1mm (1/2" β 8") |
| Wall Thickness | 1.5mm β 8.0mm |
| Length | 5.8m, 6.0m, 6.4m (standard scaffolding); custom lengths available |
| Pipe Type | ERW (Electric Resistance Welded) / Seamless (for high-pressure) |
| Galvanizing Method | Hot-Dip Galvanized (HDG, Z200-Z400 g/mΒ²) / Pre-Galvanized (Z40-Z80 g/mΒ²) |
| Standard | ASTM A53 Gr.A/B, EN 39:2001 (scaffolding), BS 1139, EN 10219, JIS G3444 (STK400/500), GB/T 3091, GB/T 13793 |
| Steel Grade | Q195, Q235, Q345, S235GT, S355GT, STK400, STK500, S235JR, S275JR |
| Pipe End | Plain end, threaded (NPT/BSPT), grooved, socketed, swaged, bevelled |
| Surface Finish | Bright galvanized, uniform spangle, smooth coating, no bare spots |
| Zinc Coating Adhesion | Passes bend test, hammer test β no flaking or peeling |
| Section Shape | Round (square/rectangular available) |
| Inspection | Zinc coating mass (ASTM A90), coating uniformity (copper sulfate dip test), hydrostatic pressure test (for fluid pipes), mechanical testing (tensile, yield, elongation, flattening, bend), dimensional inspection, visual surface check |
| Application | Scaffolding (ringlock, cuplock, kwikstage, frame), greenhouse structures, water pipeline, fire sprinkler systems, fence posts & handrails, structural columns, electrical conduit, livestock pens |
| MOQ | 2 Tons |
| Supply Ability | 10,000+ Tons/month |
| Delivery Time | 7β20 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| OD (mm) | OD (inch) | WT (mm) | Weight (kg/m) | Typical Use |
|---|---|---|---|---|
| 48.3 | 1.9" | 3.2 / 4.0 | 3.56 / 4.37 | Standard scaffolding tube (EN 39, BS 1139) |
| 48.6 | 1.91" | 3.0 / 3.2 | 3.37 / 3.58 | Ringlock/Cuplock standard |
| 42.4 | 1.67" | 2.5 / 3.2 | 2.46 / 3.09 | Light duty, handrails |
| 33.7 | 1.32" | 2.5 / 3.2 | 1.92 / 2.41 | Ledger bracing, diagonal |
| 60.3 | 2.375" | 3.2 / 4.5 | 4.50 / 6.19 | Heavy duty, shoring |
| 76.1 | 3" | 3.2 / 4.0 | 5.75 / 7.11 | Props, heavy support |
All galvanized pipes are manufactured under ISO 9001:2015 certified quality management system. Galvanizing per ISO 1461 for hot-dip coating. Testing includes: zinc coating mass (gravimetric method ASTM A90/A90M), coating uniformity (copper sulfate dip test per ASTM A239, minimum 4-6 dips), adherence test (no flaking after bending/hammering), mechanical testing (tensile, yield, elongation, flattening, bend to 90Β°), hydrostatic pressure test, dimensional inspection (OD, WT, length, straightness β€0.2% of length), and visual surface inspection. Mill Test Certificates provided.
Pipe End Protection: Plastic thread protectors on both ends for threaded pipes. Metal end caps available. Beveled ends protected with anti-rust coating.

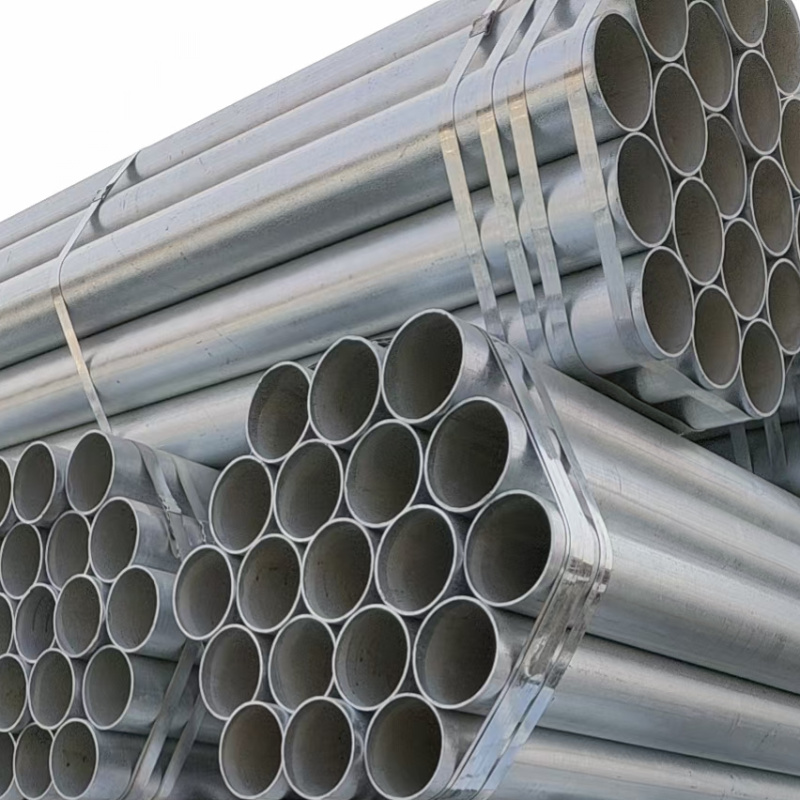

Packaging: Hexagonal bundles with 3-5 steel strapping bands. Bundle weight: 500kg β 2 tons. Waterproof plastic wrapping for sea freight. Wooden pallets for small OD pipes. Custom color marking: red/blue/yellow bands for grade identification.
Shipping: Container vessel from Tianjin/Qingdao/Shanghai. 20ft: up to 27 tons (bundles up to 5.8m). 40ft: up to 27 tons (bundles up to 11.8m). Break bulk for longer pipes.
