| Product Name | Aluzinc / Galvalume Steel Coil & Sheet (GL) |
|---|---|
| Thickness | 0.12mm – 4.0mm |
| Width | 600mm – 1500mm |
| Coating | AZ30 – AZ200 (55% Al, 43.4% Zn, 1.6% Si) |
| Spangle | Regular / Minimized / Zero |
| Standard | ASTM A792, EN 10346, JIS G3321, GB/T 14978 |
| Grade | DX51D+AZ, SGLCC, Q195, Q235, S220GD-S550GD+AZ |
| MOQ | 5 Tons |
Aluzinc (also known as Galvalume or GL) is a continuously hot-dip coated steel product where the coating consists of 55% aluminum, 43.4% zinc, and 1.6% silicon by weight. This unique alloy composition combines the barrier protection of aluminum with the galvanic (sacrificial) protection of zinc, delivering corrosion resistance 2-4 times superior to conventional galvanized (GI) coatings of the same thickness.
Key advantages over GI: superior atmospheric corrosion resistance, excellent high-temperature performance (up to 315°C without discoloration), high heat reflectivity for energy-efficient buildings, and smoother surface ideal for subsequent prepainting. Widely used as substrate for PPGL (prepainted galvalume) coils, roofing, cladding, and automotive components.
| Attribute | Specification |
|---|---|
| Product Name | Aluzinc / Galvalume Steel Coil & Sheet (GL) |
| Thickness | 0.12mm – 4.0mm |
| Width | 600mm – 1500mm (slit widths available) |
| Coating Composition | 55% Aluminum + 43.4% Zinc + 1.6% Silicon (by weight) |
| Coating Mass | AZ30 / AZ40 / AZ50 / AZ60 / AZ70 / AZ80 / AZ100 / AZ120 / AZ150 / AZ200 (g/m², double side) |
| Spangle Type | Regular spangle / Minimized spangle / Zero spangle |
| Surface Treatment | Chromated (Cr3+), anti-fingerprint, oiled, dry, acrylic coated |
| Standard | ASTM A792/A792M, EN 10346:2015, JIS G3321 (SGLCC-SGLCD), GB/T 14978-2008, AS 1397 |
| Steel Grade | DX51D+AZ (CQ), DX52D+AZ (DQ), DX53D+AZ (DDQ), SGLCC, SGLCD, S220GD+AZ to S550GD+AZ (structural), Q195, Q235 |
| Coil ID | 508mm / 610mm |
| Coil Weight | 3 – 10 Tons per coil |
| Heat Resistance | Up to 315°C continuous; up to 500°C intermittent (no discoloration below 315°C) |

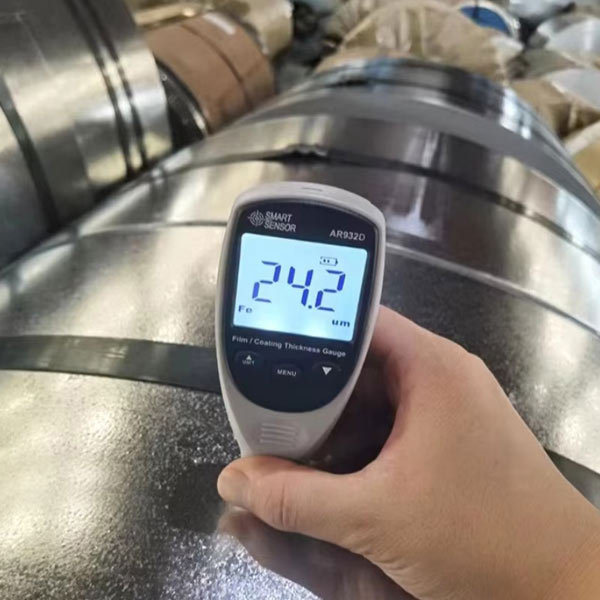

| Inspection | Coating mass (XRF/ASTM A90), coating adherence (bend test), surface quality, dimensional check, mechanical testing |
| Application | PPGL substrate, roofing & cladding, sandwich panels, garage doors, automotive parts, home appliances, agricultural buildings, solar panel frames |
| MOQ | 5 Tons (1 coil) |
| Supply Ability | 10,000+ Tons/month |
| Delivery Time | 7–20 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Property | Galvalume (GL / Aluzinc) | Galvanized (GI) |
|---|---|---|
| Coating Composition | 55% Al + 43.4% Zn + 1.6% Si | 99%+ Zinc |
| Corrosion Resistance | 2-4× better than GI | Standard |
| Heat Resistance | Up to 315°C (no discoloration) | Up to 230°C (discolors above) |
| Cut Edge Protection | Good (Al barrier + Zn galvanic) | Excellent (pure Zn sacrificial) |
| Surface Appearance | Smooth, silvery-white, uniform | Spangled, less uniform |
| Paint Adhesion | Excellent (preferred for PPGL) | Good (used for PPGI) |
| Formability | Good (coating can micro-crack) | Excellent (ductile coating) |
| Cost | Slightly higher than GI | Lower |
| Best For | Roofing, exterior, high-temp, PPGL base | General purpose, deep drawing, interior |
All galvalume coils are manufactured under ISO 9001:2015 certified quality management system on continuous hot-dip coating lines. Testing includes: coating mass (X-ray fluorescence or gravimetric method per ASTM A90), coating adherence (180° bend test), surface quality inspection, dimensional verification (thickness, width, edge), and mechanical testing (tensile, yield, elongation, hardness). Mill Test Certificates per EN 10204 3.1 provided.
Surface Protection: Chromate passivation (Cr3+ eco-friendly) and anti-fingerprint coating standard. Light oil coating for additional white rust protection. Acrylic clear coat available for enhanced durability.
Packaging: Coils wrapped with anti-rust paper + PE film, secured with steel strapping (minimum 4 straps), edge protection rings. Wooden pallet or steel cradle base. Eye-to-sky loading. 20ft container: 2-4 coils, up to 28 tons.
Send us your specifications and receive a quote within 24 hours.
