| Product Name | Seamless Carbon Steel Pipe |
|---|---|
| OD | 6mm β 1220mm (1/8" β 48") |
| WT | 1.0mm β 120mm (Sch10 β XXS) |
| Length | 5.8m / 6m / 11.8m / 12m (max 18m) |
| Process | Hot Rolled / Cold Drawn / Cold Rolled |
| Standard | ASTM A106/A53/A179/A192, API 5L, EN 10210, GB/T 8162/8163 |
| Grade | 10# / 20# / 45# / 16Mn / Q345 / A106B / A53B / X42-X70 |
| MOQ | 1 Ton |

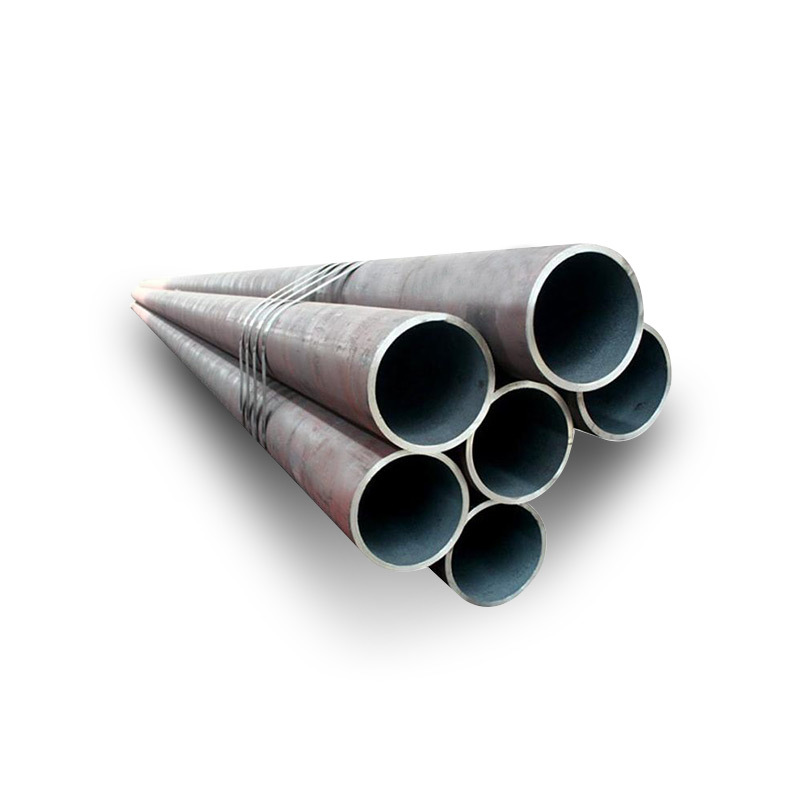

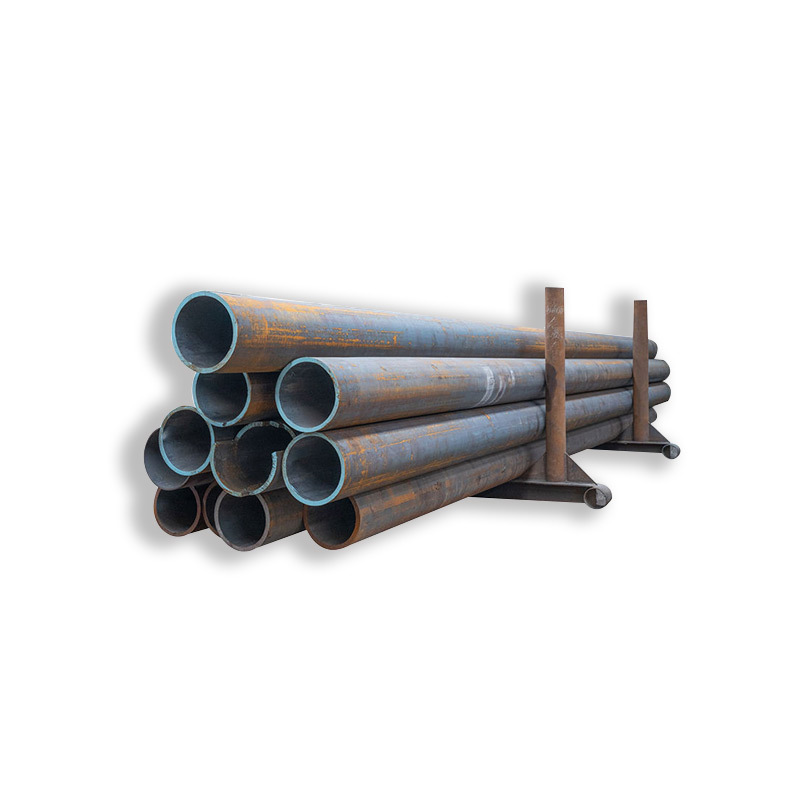

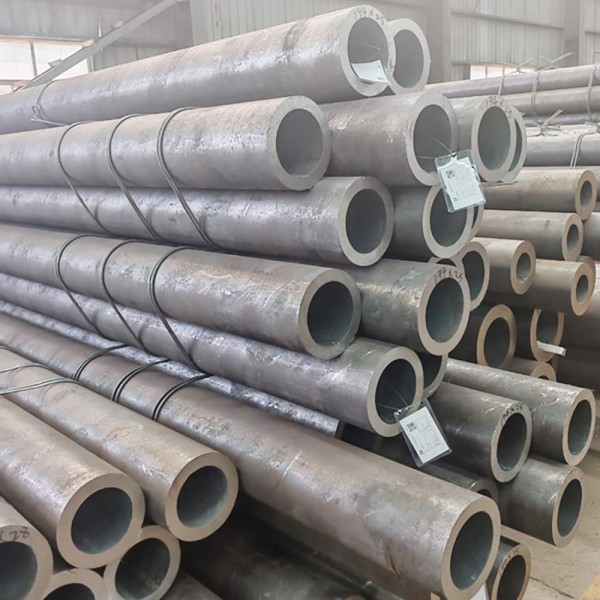

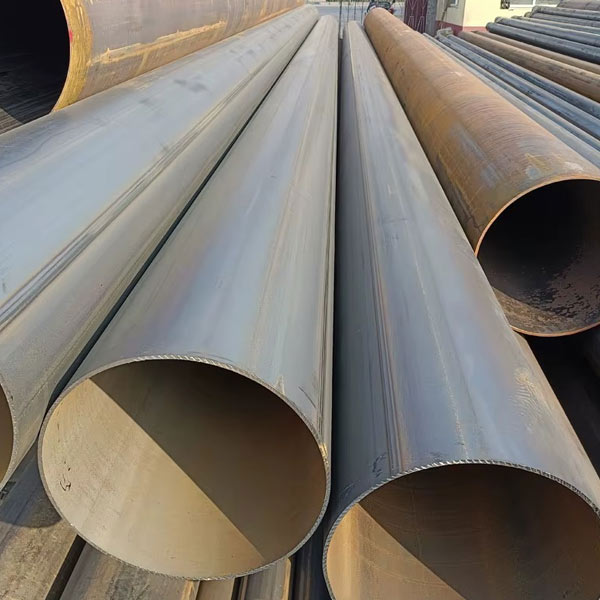

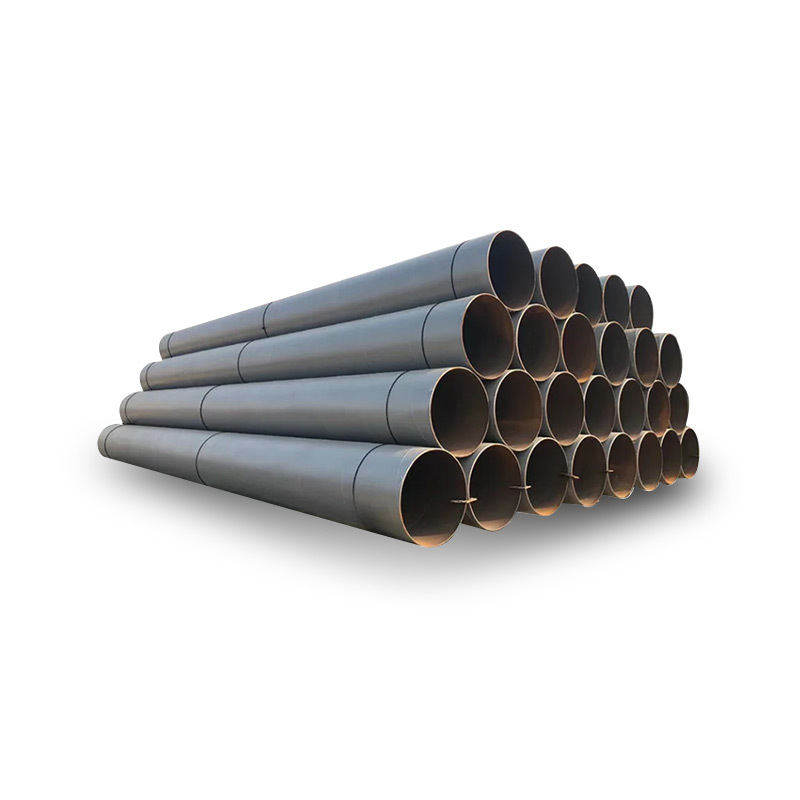

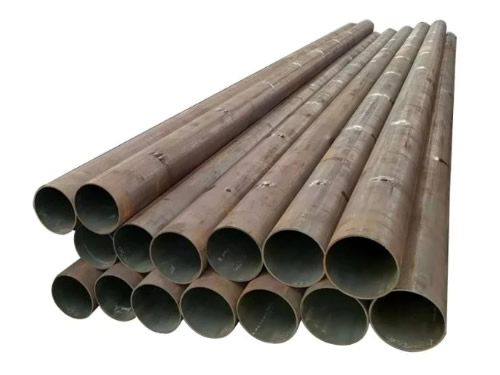

Seamless carbon steel pipes are manufactured from solid round billets through piercing, hot rolling, cold drawing, and finishing processes. Without any weld seam, these pipes offer homogeneous structure, superior strength, and excellent pressure-bearing capacity making them the preferred choice for high-pressure, high-temperature, and critical applications.
Available in hot rolled (general purpose, larger sizes) and cold drawn (precision, smaller sizes) variants. Widely used in oil & gas transportation, boiler and heat exchanger tubes, mechanical and structural applications, and chemical processing.
| Attribute | Specification |
|---|---|
| Product Name | Seamless Carbon Steel Pipe |
| OD Range | 6mm β 1220mm (1/8" β 48") |
| Wall Thickness | 1.0mm β 120mm (Sch10, Sch20, Sch40/STD, Sch80/XS, Sch160, XXS) |
| Length | 5.8m, 6m, 11.8m, 12m; Max 18m for special orders |
| Manufacturing Process | Hot Rolled / Cold Drawn / Cold Rolled |
| Standard | ASTM A106 Gr.B/C, ASTM A53 Gr.A/B, ASTM A179, ASTM A192, ASTM A210, API 5L Gr.B/X42-X70, EN 10210 S235/S275/S355/J235, GB/T 8162, GB/T 8163, DIN 17175, JIS G3454/G3455 |
| Material Grade | 10#, 20#, 45#, 16Mn, Q235, Q345, A106B, A53B, A179, A192, St35.8, St45.8, STPG370, STPT410 |
| Surface Treatment | Black painting, anti-rust oil, hot-dip galvanized, 3PE coating, bare (pickled/oiled) |
| Pipe End | Plain end, bevelled end (30Β°-35Β°), threaded |
| Section Shape | Round (square/rectangular available upon request) |
| Production Line | Billet β Heating β Piercing β Hot Rolling β Sizing β Cooling β Straightening β Cutting β Inspection |
| Inspection | Hydrostatic pressure test, ultrasonic flaw detection, eddy current test, mechanical testing (tensile, flattening, bend, impact), chemical analysis, PMI |
| Application | Oil & gas pipeline, boiler & heat exchanger, mechanical structure, chemical processing, shipbuilding, power plant, construction |
| MOQ | 1 Ton |
| Supply Ability | 8,000+ Tons/month |
| Delivery Time | 7β25 days after order confirmation |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Standard | Grade | OD Range | WT Range | Key Application |
|---|---|---|---|---|
| ASTM A106 | Gr.B / Gr.C | 10β1200mm | 1β120mm | High-temperature service, boiler, refinery |
| ASTM A53 | Gr.A / Gr.B | 10β1200mm | 1β120mm | General structural, pressure piping |
| ASTM A179 | A179 | 6β76mm | 1β8mm | Heat exchanger, condenser tubes |
| ASTM A192 | A192 | 10β200mm | 1β25mm | High-pressure boiler tubes |
| API 5L | Gr.B / X42βX70 | 21β1220mm | 2β60mm | Oil & gas transmission pipeline |
| EN 10210 | S235 / S275 / S355 | 21β1220mm | 2β120mm | Structural hollow sections |
| GB/T 8163 | 10# / 20# / Q345 | 6β630mm | 1β40mm | Fluid transportation |
| DIN 17175 | St35.8 / St45.8 | 15β500mm | 2β50mm | Boiler & heat exchanger |
| Industry | Specific Use |
|---|---|
| Oil & Gas | Crude oil transportation, natural gas pipelines, refinery process piping, well casing |
| Power Generation | Boiler tubes, superheater tubes, economizer tubes, steam pipelines |
| Chemical Processing | High-pressure process piping, heat exchangers, reactor tubes |
| Mechanical Engineering | Hydraulic cylinders, bearing tubes, automotive components, machinery parts |
| Construction | Structural columns, bridge supports, piling, scaffolding |
| Shipbuilding | Marine piping systems, offshore platform structures |
All seamless pipes are manufactured under ISO 9001 certified quality management system. Each pipe undergoes: hydrostatic pressure testing (up to 20MPa), ultrasonic flaw detection (100% for high-pressure grades), eddy current inspection, mechanical testing (tensile, yield, elongation, flattening, bend, impact at -20Β°C to -46Β°C), chemical composition analysis via spectrometer, and dimensional verification. Mill Test Certificates (EN 10204 3.1) provided with every shipment. Third-party inspection by SGS, BV, TUV available.
Surface Protection: Bare pipes: pickled and oiled. Coated pipes: black paint / anti-rust varnish / hot-dip galvanized / 3PE anti-corrosion coating. PVC end caps for threaded pipes. Waterproof wrapping available.

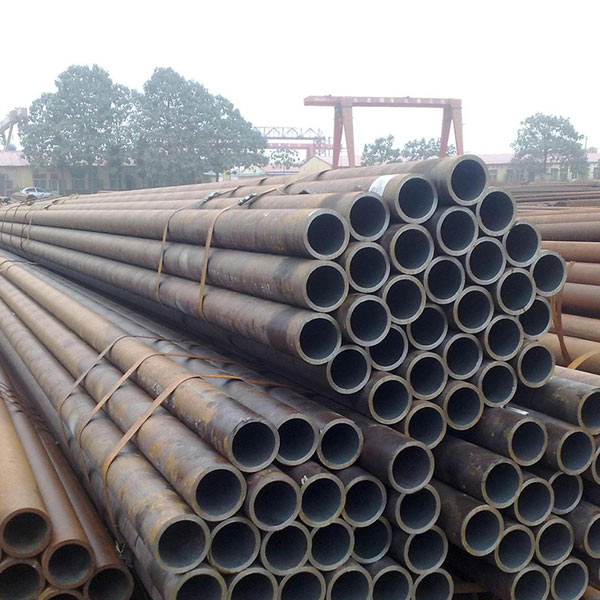

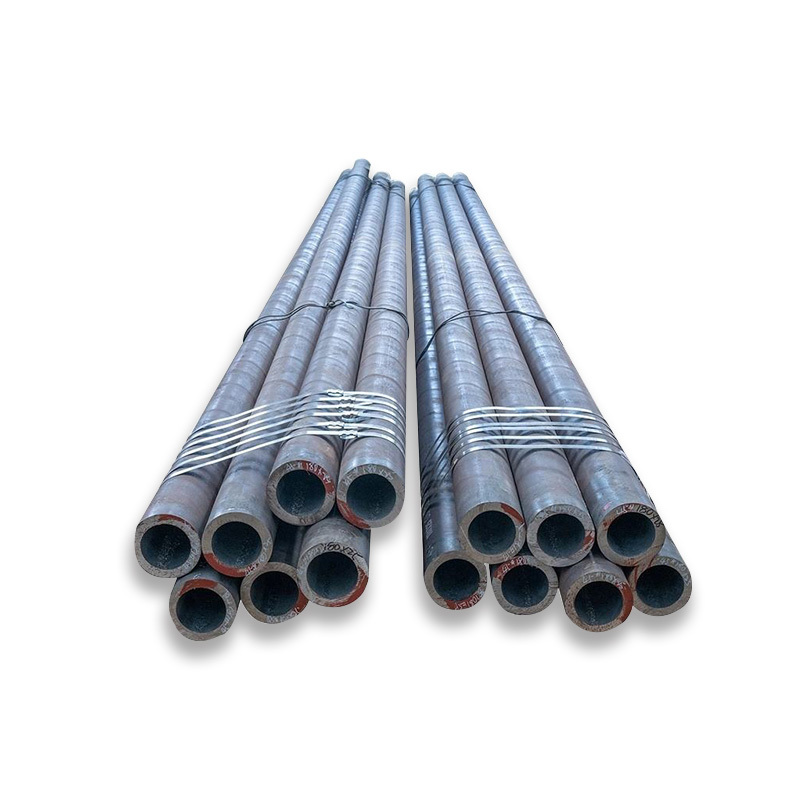

Packaging: Hexagonal bundles with steel strapping for small OD; loose packing with spacers for large OD. Wooden pallets or crates for precision/cold-drawn pipes. Custom labeling, color band marking per API specification.
Shipping: Container vessel from Tianjin/Qingdao/Shanghai. 20ft: up to 28 tons. 40ft: up to 28 tons. Break bulk for large diameter/heavy wall pipes.
Send us your specifications and receive a quote within 24 hours.
