| Product Name | Aluminum Plate / Sheet (1050/1060/1100/3003/5052) |
|---|---|
| Thickness | 0.2mm β 500mm |
| Width | 500mm β 2600mm |
| Length | 1000mm β 12000mm (custom cut) |
| Alloy | 1050, 1060, 1100, 3003, 5052, 5083, 6061, 7075 |
| Temper | O, H12, H14, H16, H18, H22, H24, H32, T4, T6 |
| Standard | ASTM B209, EN 485, GB/T 3880, JIS H4000 |
| MOQ | 500kg |

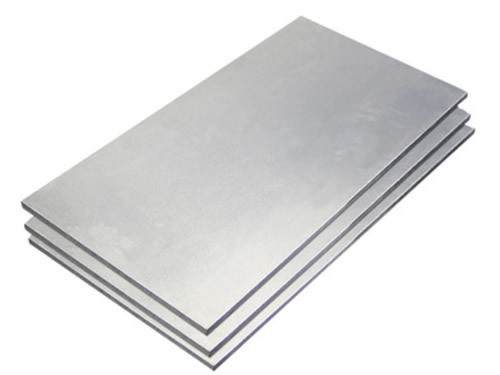

Aluminum plates and sheets are versatile flat-rolled products available in a wide range of alloys from commercially pure 1050/1060/1100 (excellent corrosion resistance, high thermal/electrical conductivity) to high-strength 5052/5083 (marine grade) and heat-treatable 6061/7075 (aerospace/structural). Produced through hot rolling (thick plates) or cold rolling (thin sheets with superior surface finish and tolerance).
Widely used in construction, transportation, marine, chemical equipment, and general fabrication. Available with mill, brushed, polished, or anodized surface finishes. Custom cutting, shearing, and edge preparation available.
| Attribute | Specification |
|---|---|
| Product Name | Aluminum Plate / Sheet |
| Thickness | 0.2mm β 500mm |
| Width | 500mm β 2600mm |
| Length | 1000mm β 12000mm (custom cut available) |
| Alloy | 1050 (99.5% pure), 1060 (99.6%), 1100 (99%+Cu), 3003 (Mn alloy), 5052 (Mg alloy marine), 5083 (marine structural), 6061 (heat-treatable structural), 7075 (aerospace high-strength) |
| Temper | O (annealed), H12-H18 (strain hardened), H22-H32 (strain hardened + partially annealed), T4/T6 (solution treated + aged) |
| Standard | ASTM B209/B209M, EN 485-2, GB/T 3880.1/2-2012, JIS H4000, ISO 6361 |
| Surface | Mill finish, bright polished, brushed, anodized, PVDF coated, pebble/embossed |
| Edge | Mill edge / Slit edge / Sheared edge / Saw cut |
| Inspection | Chemical analysis (OES), mechanical (tensile, yield, elongation, hardness), dimensional, flatness, surface inspection, UT for thick plates |
| Application | Shipbuilding & marine, automotive body panels, construction & cladding, chemical storage tanks, pressure vessels, aircraft structures (7075), tooling plates, mold bases, heat exchangers |
| MOQ | 500kg |
| Supply Ability | 10,000+ Tons/month |
| Delivery Time | 7β20 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 certified. Chemical analysis (OES), mechanical testing, dimensional inspection, flatness check, surface quality. MTC per EN 10204 3.1.

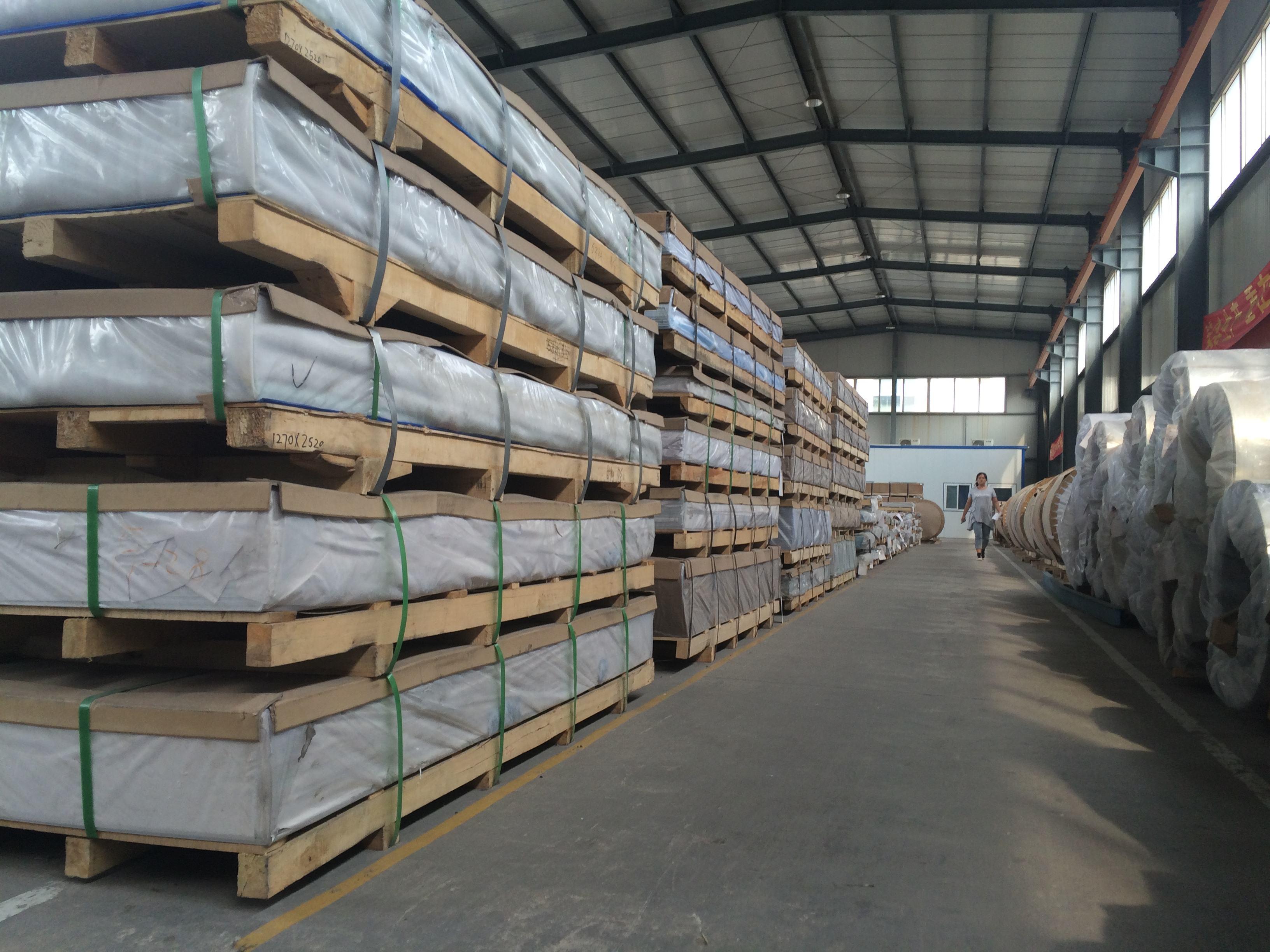

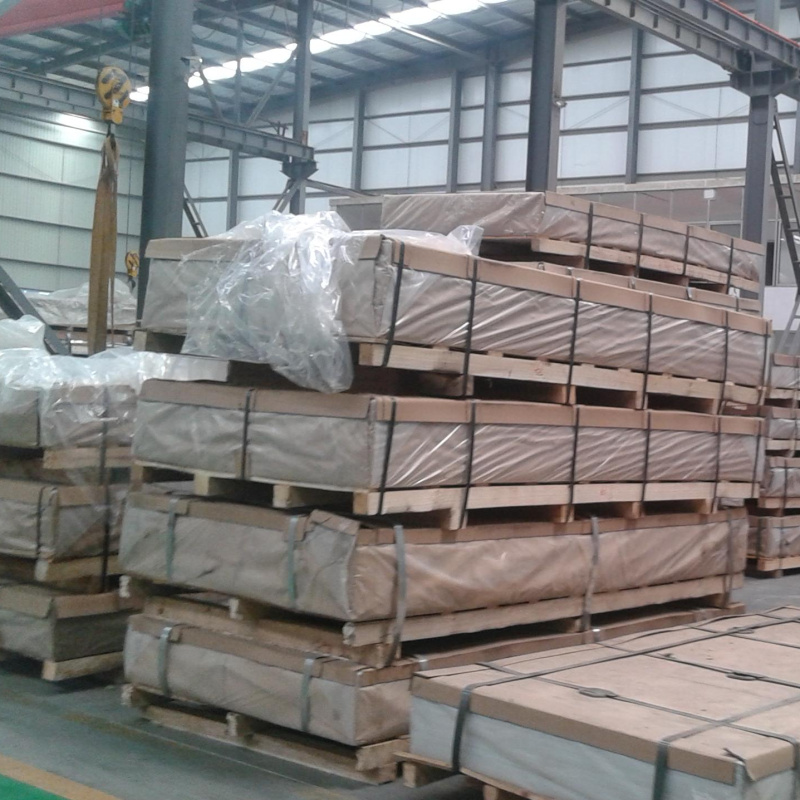

Packaging: PE/PVC film protection on surface. Interleaving paper between sheets for mirror/polished finish. Stacked on wooden pallets/skids with edge protectors. Steel strapping, waterproof wrapping for sea freight.
Send us your specifications and receive a quote within 24 hours.
