| Product Name | Concentric / Eccentric Pipe Reducer |
|---|---|
| Size | DN15ĂDN10 â DN1200ĂDN1000 |
| WT | Sch5S â Sch160 / XXS |
| Type | Concentric (CONC) / Eccentric (ECC) |
| Connection | Butt Weld (BW) / Socket Weld / Threaded |
| Standard | ASME B16.9, ASME B16.11, EN 10253, MSS SP-75 |
| Material | Carbon Steel / Stainless Steel / Alloy Steel |
| MOQ | 10 pieces |

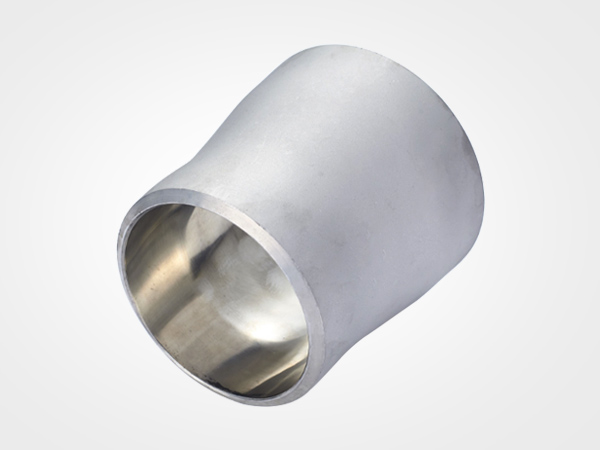

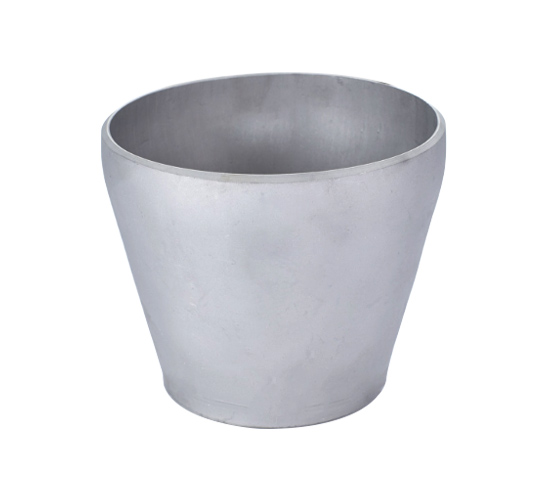

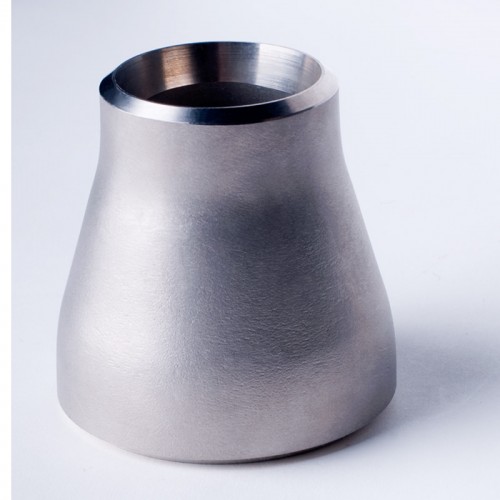

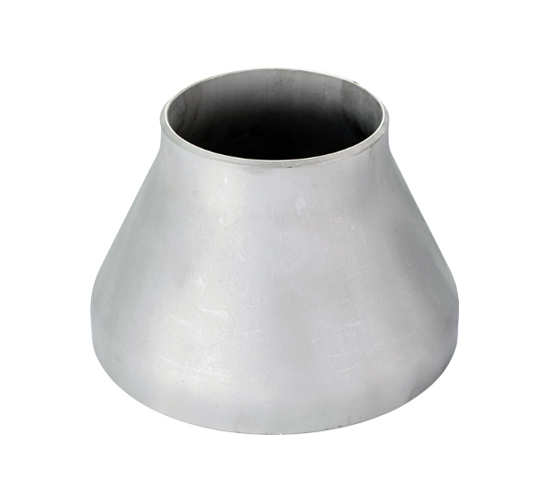

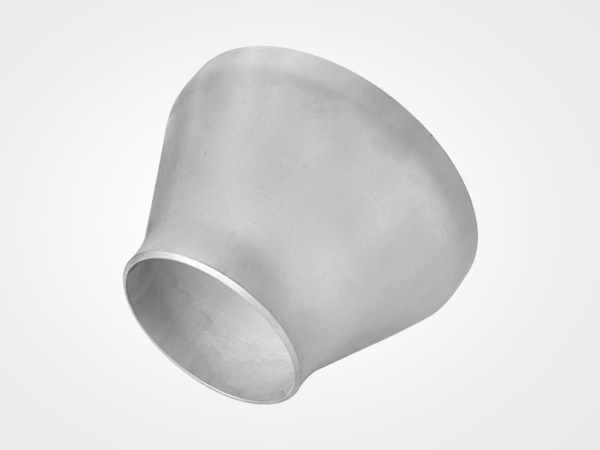

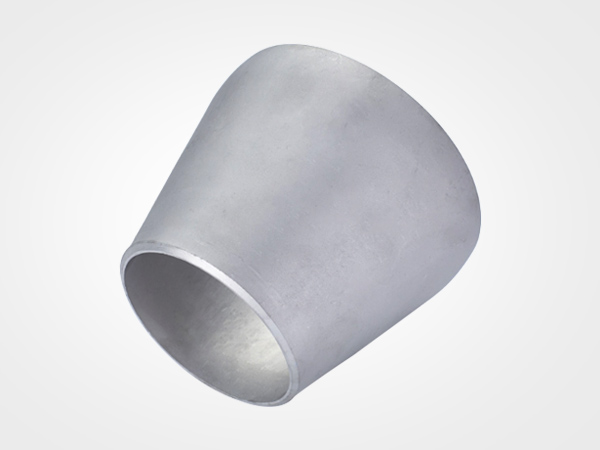

Pipe reducers are tapered fittings used to connect pipes of different diameters, allowing a smooth transition of flow. Concentric reducers have both ends aligned on the same centerline axis â ideal for vertical piping and pump suction/discharge. Eccentric reducers have one flat side â recommended for horizontal piping to prevent air pockets (flat side up for pump suction) or to maintain consistent bottom-of-pipe elevation.
Available in seamless (smaller sizes) and welded (larger sizes) construction. Butt weld ends with standard bevelling per ASME B16.25. Custom lengths and reducing ratios available.
| Attribute | Specification |
|---|---|
| Product Name | Pipe Reducer (Concentric / Eccentric) |
| Size Range | DN15ĂDN10 up to DN1200ĂDN1000 |
| Wall Thickness | Sch5S, Sch10S, Sch20, Sch40/STD, Sch80/XS, Sch160 |
| Type | Concentric (CONC) - centerlines aligned; Eccentric (ECC) - one side flat |
| Connection | Butt Weld BW (ASME B16.9), Socket Weld SW (â¤DN50), Threaded (â¤DN50) |
| Standard | ASME B16.9 (BW), ASME B16.11 (SW/Thrd), EN 10253-2/3/4, MSS SP-75, JIS B2311/2312 |
| Carbon Steel | ASTM A234 WPB/WPC, WPL6; 20#, Q235, 16Mn |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, WP2205 (Duplex) |
| Alloy Steel | ASTM A234 WP11/WP22/WP5/WP9; 15CrMoG |
| Inspection | PMI, chemical, mechanical, hydrostatic, dimensional (large OD, small OD, length, WT at both ends), UT/RT per order, visual |
| Application | Pump suction & discharge lines, compressor piping, heat exchanger connections, process piping diameter changes, tank & vessel nozzle connections |
| MOQ | 10 pieces |
| Supply Ability | 8,000+ Pieces/month |
| Delivery Time | 5â15 days (stock); 15â30 days (production) |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 / PED certified. PMI 100%, OES chemical, mechanical, hydrostatic, dimensional, UT/RT, visual. MTC EN 10204 3.1.
Packaging: Wooden pallets/crates. Plastic end caps on bevels. Anti-rust oil (CS). SS individually bagged for small sizes. Clear marking per MSS SP-25. Waterproof wrapping.
Send us your specifications and receive a quote within 24 hours.
