| Product Name | PPGL (Pre-Painted Galvalume Steel Coil) |
|---|---|
| Substrate | GL (Galvalume, 55% Al-Zn) |
| Thickness | 0.12mm – 2.0mm |
| Width | 600mm – 1250mm |
| Coil Weight | 3-5 Tons (customizable) |
| Top Coating | PE / SMP / HDP / PVDF, 11-35μm |
| Surface Finish | Matt / Wrinkled / Glossy / Emboss |
| MOQ | 5 Tons |
PPGL (Pre-Painted Galvalume Steel Coil) uses an aluminum-zinc plated steel substrate (55% aluminum, 43.4% zinc, 1.6% silicon) as the base metal. The substrate undergoes surface treatment including degreasing, phosphating, and chromating, then receives an organic coating applied by baking at high temperature. The aluminum-zinc substrate delivers superior corrosion and heat resistance, while the surface coating provides excellent aesthetic versatility. Compared to standard PPGI, PPGL offers smoother surface, better corrosion resistance, and superior high-temperature performance. Service life can reach 25+ years.
| Attribute | Specification |
|---|---|
| Product Name | PPGL / Prepainted Galvalume Steel Coil |
| Thickness | 0.12mm – 2.0mm |
| Width | 600mm – 1250mm (customizable) |
| Substrate | GL (Galvalume 55% Al-Zn) |
| Zinc Coating | AZ30 – AZ150 g/m² |
| Top Coating Types | PE / SMP / HDP / PVDF |
| Top Coat Thickness | 11 – 35 μm |
| Back Coat Thickness | 5 – 14 μm |
| Hardness | Soft (<60 HRB) / Mid-Hard (60-85) / Full Hard (85-95) |
| Surface Finish | Matt / Glossy / Wrinkled / Embossed |
| Colors | Full RAL Chart, Custom Matching Available |
| Coil ID | 508mm / 610mm |
| Coil Weight | 2 – 10 Tons per coil |
| Material Grade | SGCC, CGCC, DX51D, Q195/Q235 |
| Standards | AISI, ASTM, BS, DIN, GB, JIS, EN |
| MOQ | 5 Tons |
| Supply Ability | 5,000 – 10,000 Tons/month |
| Delivery Time | 8 – 25 days after order confirmation |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
| Industry | Specific Uses |
|---|---|

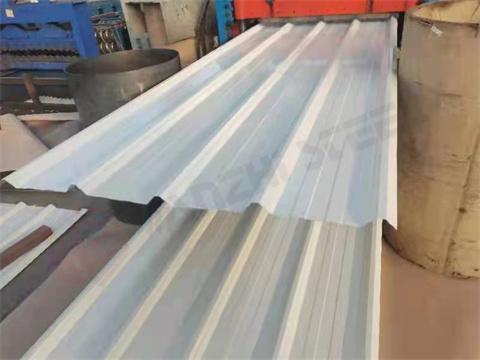

| Construction | Roofing sheets, wall panels, eaves, garage doors, ceilings, sandwich panels |
| Home Appliances | Refrigerator panels, washing machine bodies, air conditioner housings, microwave ovens |
| Agriculture | Greenhouses, poultry houses, barns, storage sheds, silos |
| Furniture | Shutters, metal doors, decorative panels, office furniture |
| Transportation | Container panels, trailer bodies, ship interiors |
All PPGL coils are produced on dedicated color-coated steel production lines. Each coil undergoes: coating thickness measurement, adhesion testing (T-bend & impact), color difference inspection (spectrophotometer), gloss testing, and dimensional verification.
Packaging Details: Standard seaworthy export package — waterproof paper + plastic film wrap + iron sheet outer cover + edge protection rings + steel strapping + wooden pallet base. Custom labeling and marking per client requirements.
Shipping: By container vessel from Tianjin/Qingdao/Shanghai port. 20ft container loads approximately 25 tons; 40ft container loads approximately 28 tons (depending on coil dimensions).
