| Product Name | Aluminum Checker / Tread Plate (6061/3003/5052) |
|---|---|
| Thickness | 0.5mm β 12mm |
| Width | 800mm β 2000mm |
| Length | 1000mm β 12000mm |
| Pattern | 5-bar / 3-bar / Diamond / Single Bar / Willow |
| Alloy | 3003, 5052, 5083, 6061, 1100, 1050 |
| Standard | ASTM B209, EN 485, GB/T 3880, JIS H4000 |
| MOQ | 500kg |

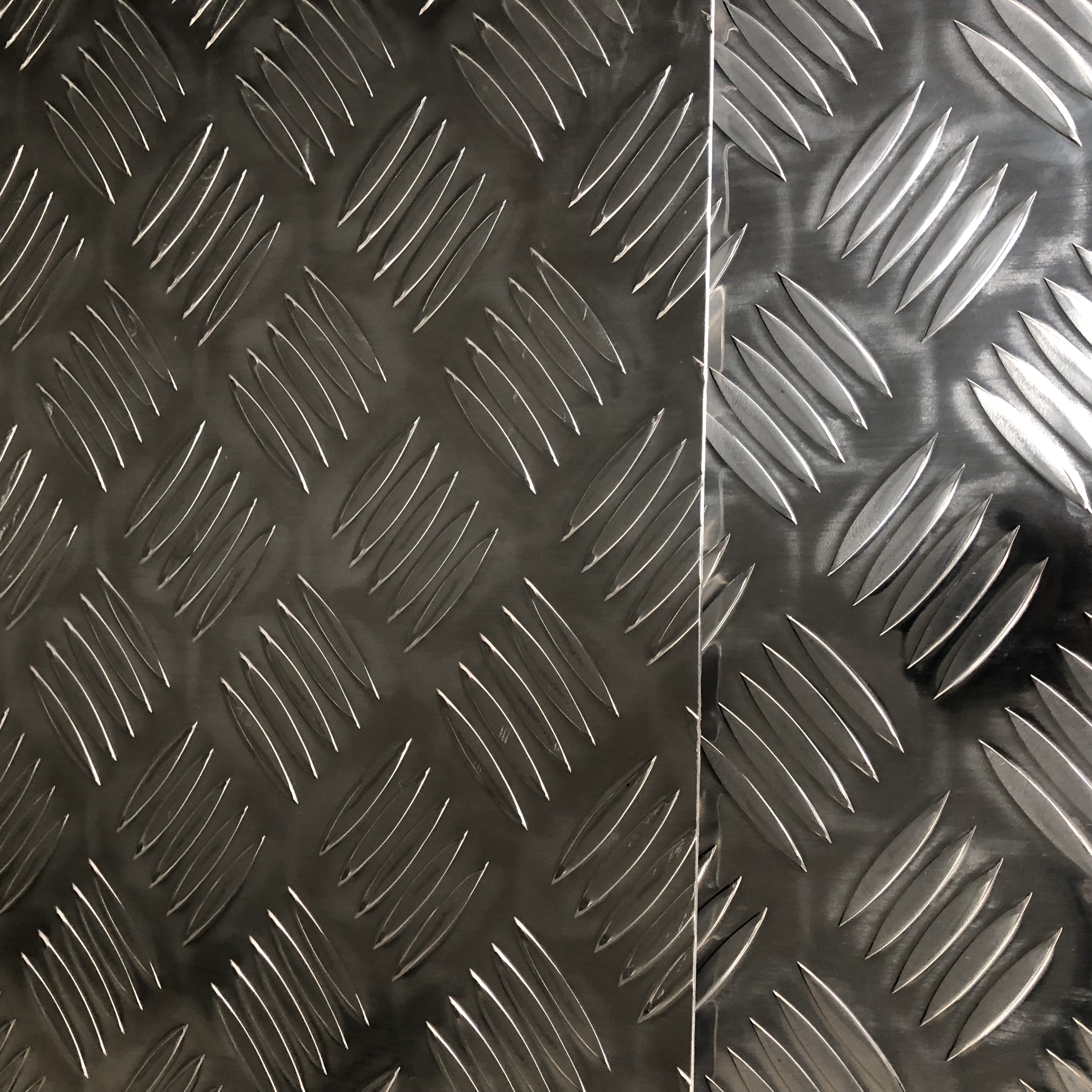

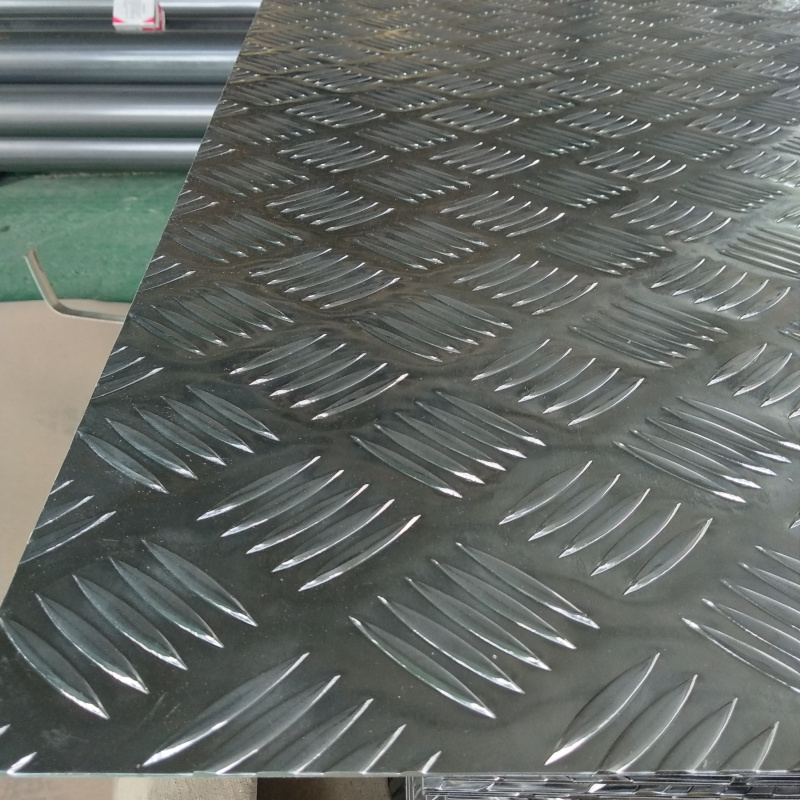

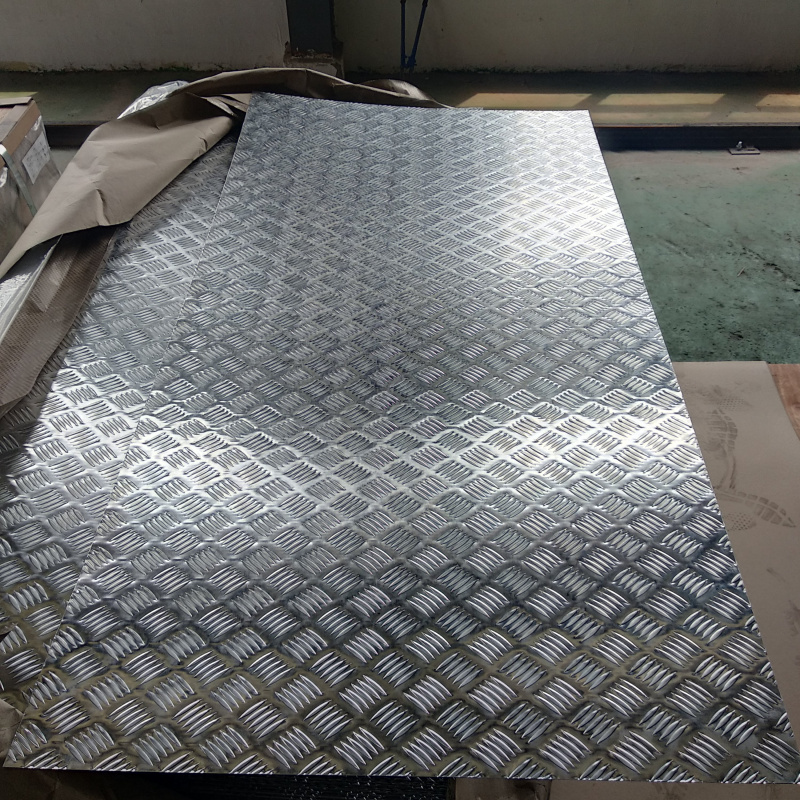

Aluminum checker plates (also called tread plates or diamond plates) are aluminum sheets with raised patterns on one surface providing excellent slip resistance. The raised pattern is formed through hot rolling with an engraved roller or through embossing. Available in 5-bar (most common), 3-bar, diamond, or single bar patterns.
Common alloys include 3003 (general purpose, good formability), 5052 (higher strength, corrosion resistant for marine use), and 6061 (structural, heat-treatable). Widely used for flooring, stair treads, truck beds, trailer floors, toolbox surfaces, and decorative applications requiring a combination of grip, durability, and lightweight properties.
| Attribute | Specification |
|---|---|
| Product Name | Aluminum Checker / Tread Plate |
| Thickness | 0.5mm β 12mm (base thickness excluding pattern height) |
| Pattern Height | 0.5mm β 1.5mm above base |
| Width | 800mm β 2000mm |
| Length | 1000mm β 12000mm (custom cut) |
| Pattern Type | 5-bar (standard), 3-bar, single bar, diamond, willow, lentil |
| Alloy | 1060, 1100 (pure Al), 3003 (general), 5052 (marine), 5083 (heavy marine), 6061 (structural) |
| Temper | H14, H24, H32, H112, O |
| Standard | ASTM B209/B209M, EN 485/EN 1386, GB/T 3880, JIS H4000 |
| Surface | Mill finish, bright polished, anodized, powder coated |
| Inspection | Chemical (OES), mechanical, dimensional (base thickness, pattern height, pitch), surface quality |
| Application | Vehicle floors (truck/trailer/bus/train), stair treads & platforms, toolbox & cabinet surfaces, marine deck & dock, industrial flooring, elevator interiors, decorative wall panels, ramp surfaces |
| MOQ | 500kg |
| Supply Ability | 5,000+ Tons/month |
| Delivery Time | 7β20 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 certified. Testing: OES chemical, mechanical, dimensional (base thickness Β±0.05mm, pattern height, pitch), surface quality, flatness. MTC EN 10204 3.1.

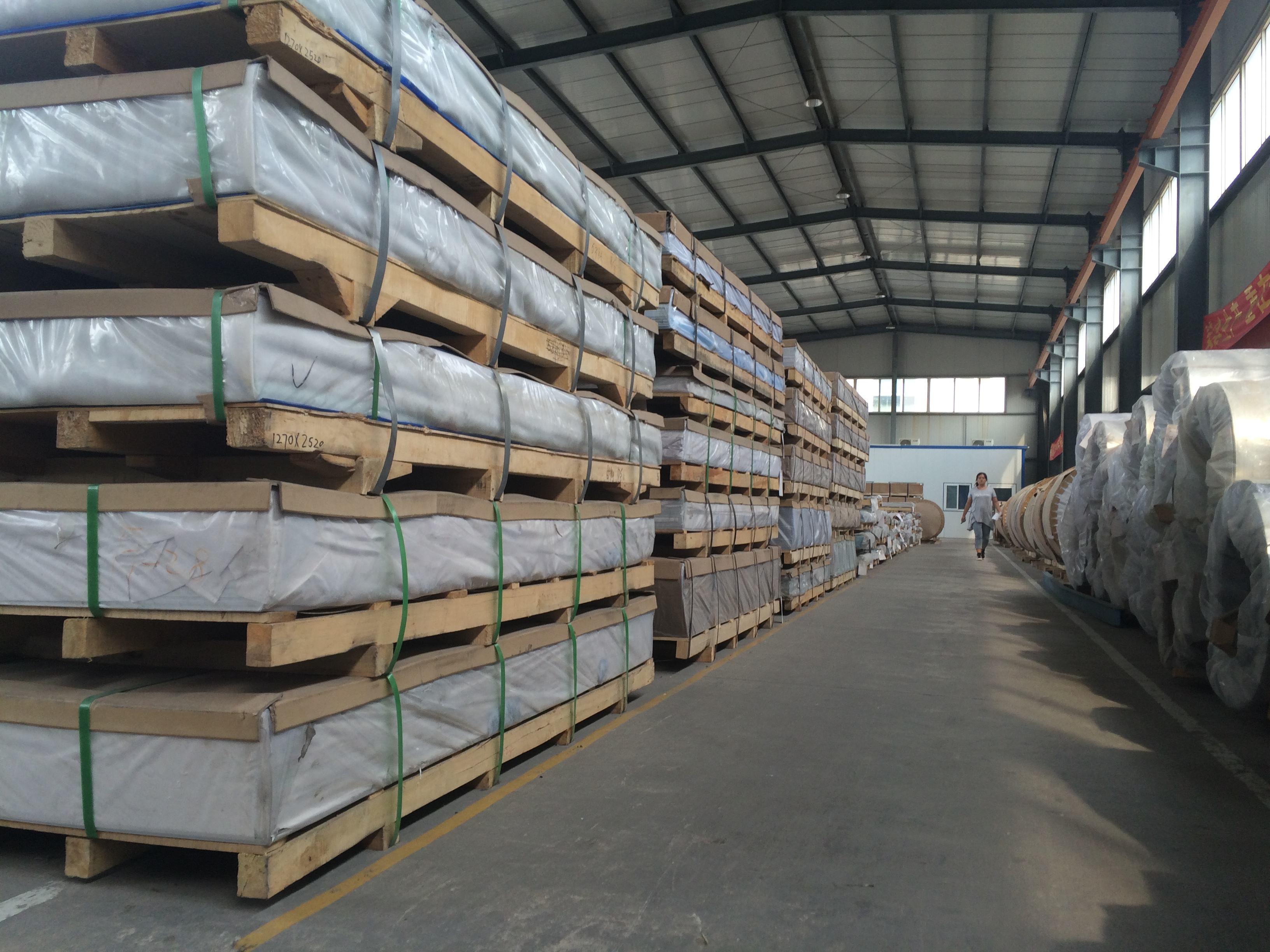

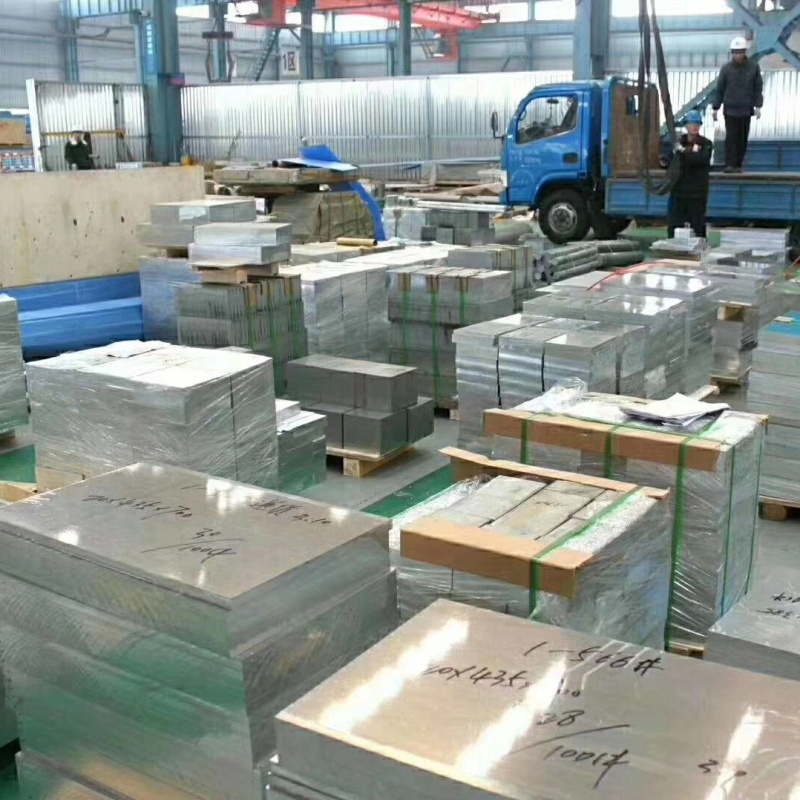

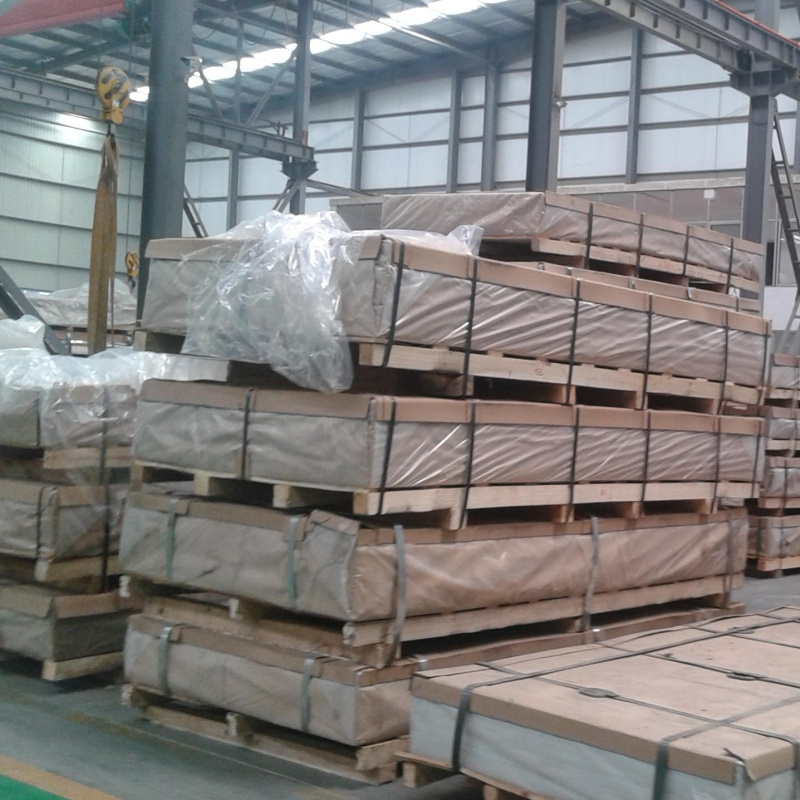

Packaging: PE film on patterned surface, interleaving paper between sheets. Stacked on wooden pallets/skids, steel strapping. Edge protectors. Waterproof wrapping for sea freight. 1-2 tons per bundle.
