| Product Name | Pipe End Cap (Butt Weld) Stainless Steel / Carbon Steel |
|---|---|
| Size | DN15 β DN1200 (1/2" β 48") |
| WT | Sch5S β Sch160 / XXS |
| Type | Butt Weld (Ellipsoidal / Torispherical) |
| Shape | Ellipsoidal (2:1) / Hemispherical / Flat / Torispherical |
| Standard | ASME B16.9, EN 10253, MSS SP-75 |
| Material | Carbon Steel / Stainless Steel / Alloy Steel |
| MOQ | 10 pieces |

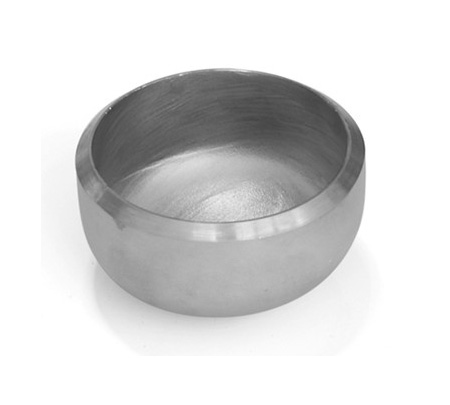

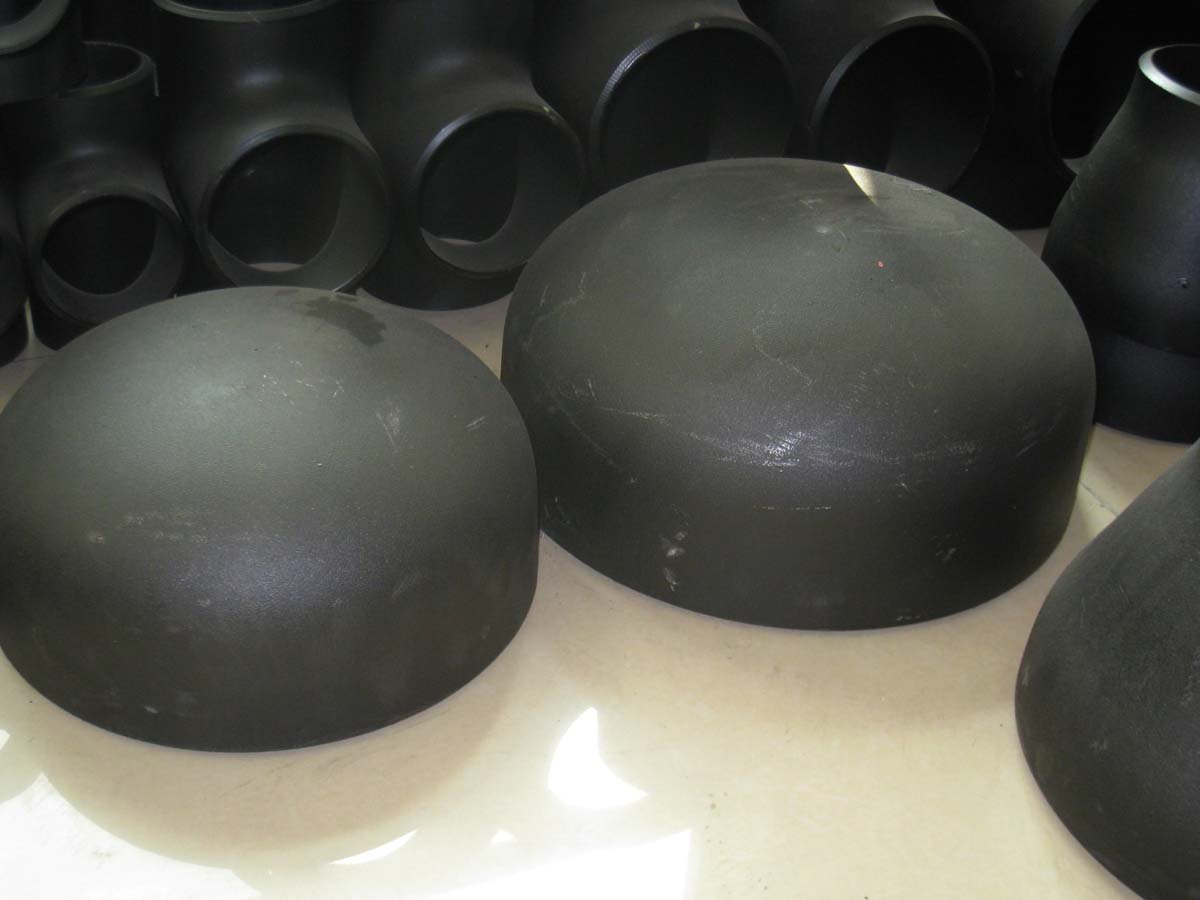

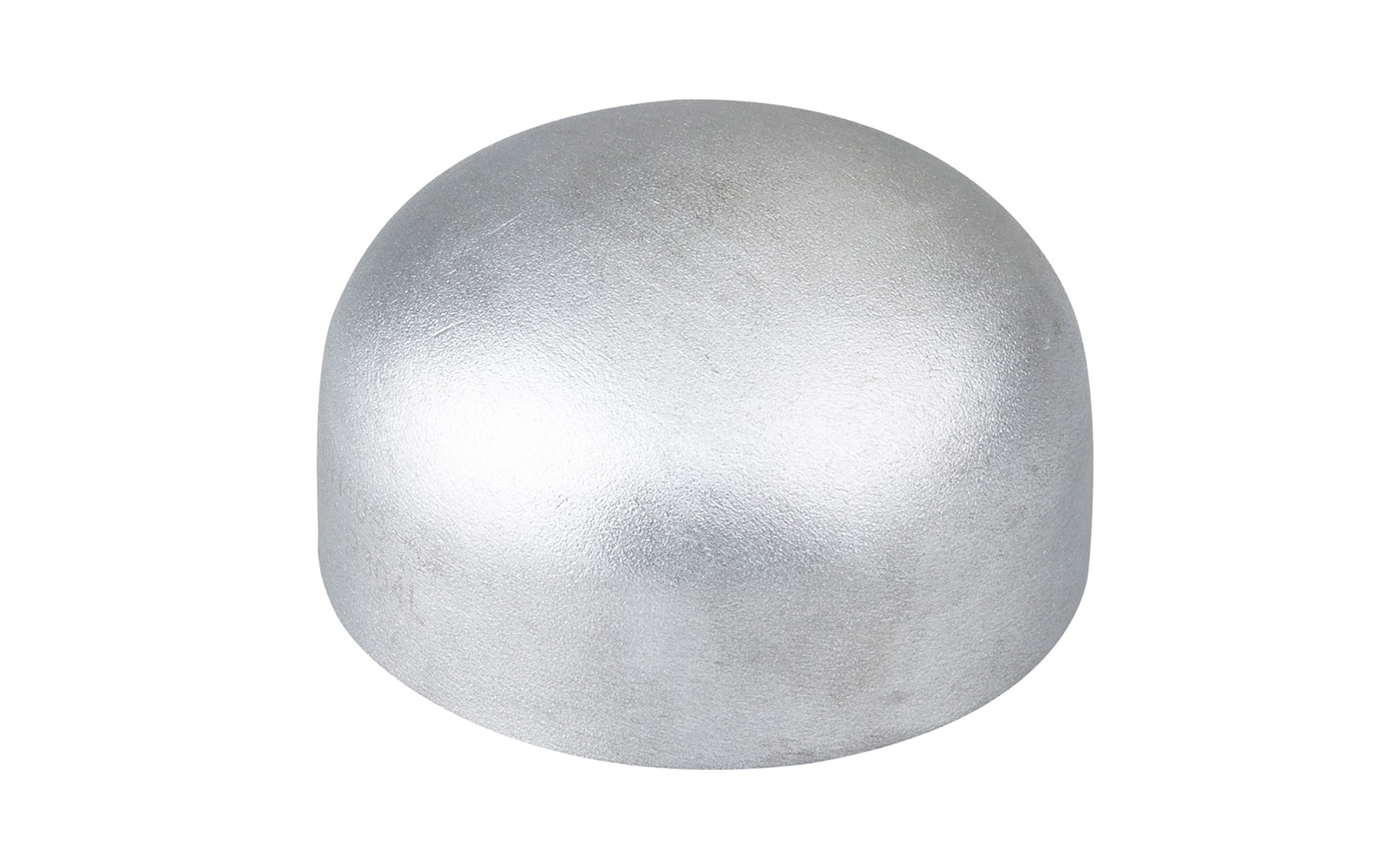

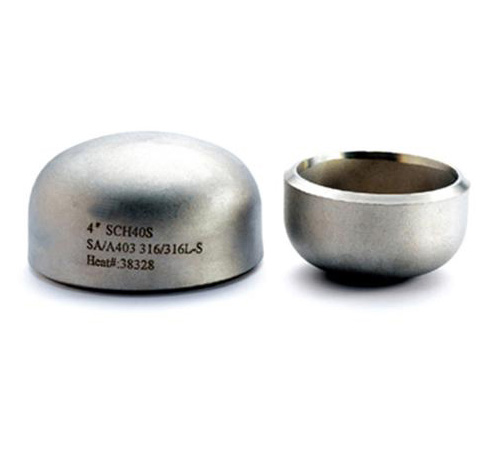

Pipe end caps (butt weld caps) are fittings used to permanently close the end of a pipe, providing a pressure-tight seal. The standard cap is ellipsoidal (2:1 semi-elliptical) shaped β offering excellent pressure containment with uniform stress distribution. Torispherical caps (also called dished ends) are used for lower pressure applications and vessels. Flat caps are used for low-pressure or non-pressure applications.
Manufactured from seamless or welded pipe/plate through hot pressing (forging) or spinning processes. Butt weld ends with standard bevelling per ASME B16.25 for welding to matching pipe. Available in carbon steel, stainless steel, and alloy steel grades for diverse service conditions.
| Attribute | Specification |
|---|---|
| Product Name | Pipe End Cap (Butt Weld) |
| Size | DN15 β DN1200 (1/2" β 48"), larger sizes available as fabricated caps |
| Wall Thickness | Sch5S, Sch10S, Sch20, Sch40/STD, Sch80/XS, Sch160, XXS |
| Type | Butt Weld Cap (ASME B16.9), Threaded Cap (ASME B16.11, β€DN100), Socket Weld Cap (β€DN50) |
| Shape | Ellipsoidal 2:1 (standard), Torispherical (dished), Hemispherical, Flat/Plate |
| Standard | ASME B16.9 (BW), ASME B16.11 (SW/Thrd), EN 10253-2/3/4, MSS SP-75, JIS B2311/2312, GB/T 12459 |
| Carbon Steel | ASTM A234 WPB/WPC, WPL6 (low temp); 20#, Q235, 16Mn |
| Stainless Steel | ASTM A403 WP304/304L, WP316/316L, WP321, 0Cr18Ni9, 00Cr17Ni14Mo2 |
| Alloy Steel | ASTM A234 WP11/WP22/WP5/WP9; 15CrMoG, 12Cr1MoVG, P91 |
| Inspection | PMI, chemical, mechanical, hydrostatic, dimensional (OD, WT, height/E, ovality), UT/RT, visual |
| Application | Pipe end closure (permanent), pressure vessel heads, tank ends, header caps for boilers, pipeline pig launcher/receiver ends, structural column base plates, handrail termination |
| MOQ | 10 pieces |
| Supply Ability | 8,000+ Pieces/month |
| Delivery Time | 5β15 days (stock); 15β25 days (production) |
| Price Term | FOB / CIF / CFR |
| Payment | T/T, L/C |
ISO 9001 / PED certified. PMI 100%, OES chemical, tensile/yield/hardness, hydrostatic (1.5Γ design), dimensional, UT/RT, visual. MTC EN 10204 3.1 with full traceability.
Packaging: Wooden pallets/crates, sorted by size and grade. Plastic end protection on bevelled edge. Anti-rust oil for carbon steel. SS individually PE bagged for small sizes. Clear marking per MSS SP-25. Waterproof wrapping for sea freight.
