| Product Name | Anti-Corrosion Weather Resistant Color Coated Profiled Sheet |
|---|---|
| Thickness | 0.12mm β 1.5mm (base metal) / Total thickness with coating |
| Width | 600mm β 1250mm (before profiling) |
| Length | Custom cut, 1m β 18m (per request) |
| Substrate | GI (Galvanized) / GL (Galvalume) / Aluminum |
| Coating | PE / SMP / HDP / PVDF, 15-35ΞΌm top coat |
| Standard | ASTM A755, EN 10169, GB/T 12754, JIS G 3312 |
| MOQ | 500 Sheets or 5 Tons |

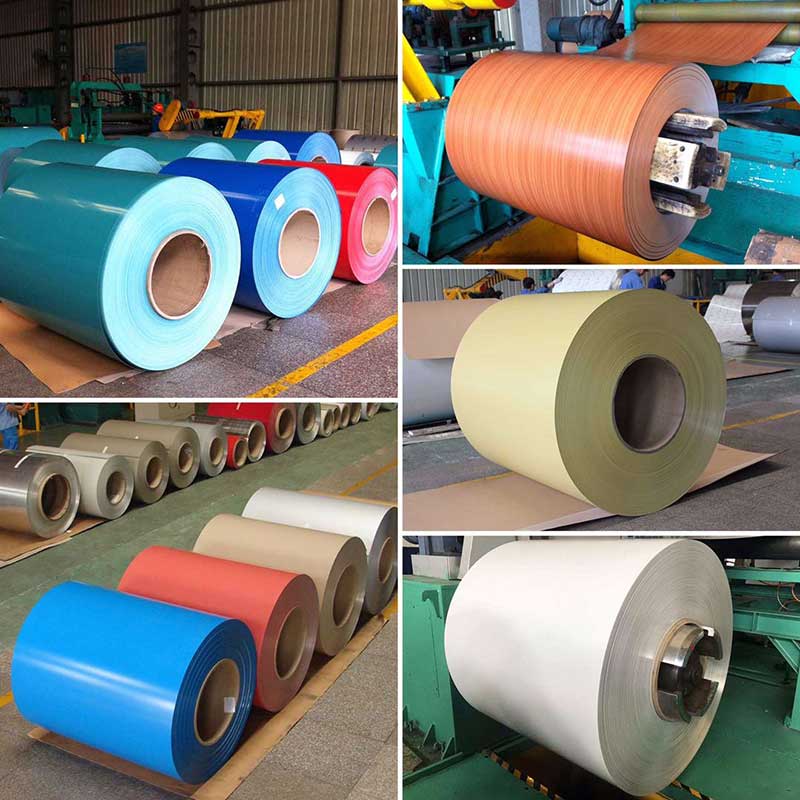

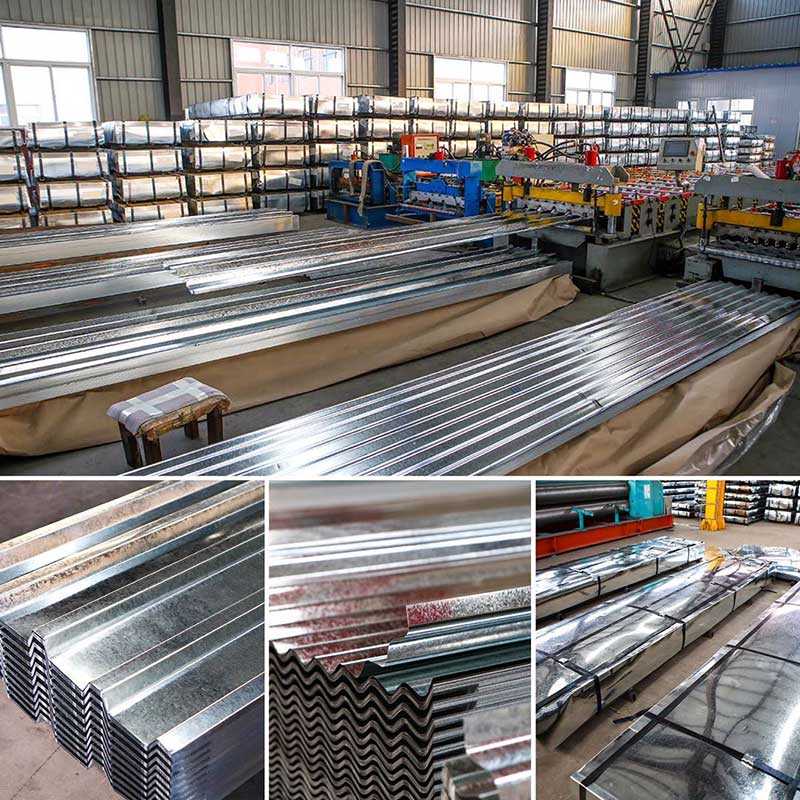

Color coated profiled sheets (also known as corrugated roofing sheets or trapezoidal sheets) are manufactured by roll-forming prepainted steel coils into various profiles. The base material is galvanized or galvalume steel with PE/SMP/HDP/PVDF coating, providing excellent weather resistance, corrosion protection, and aesthetic appeal for roofing and wall cladding applications.

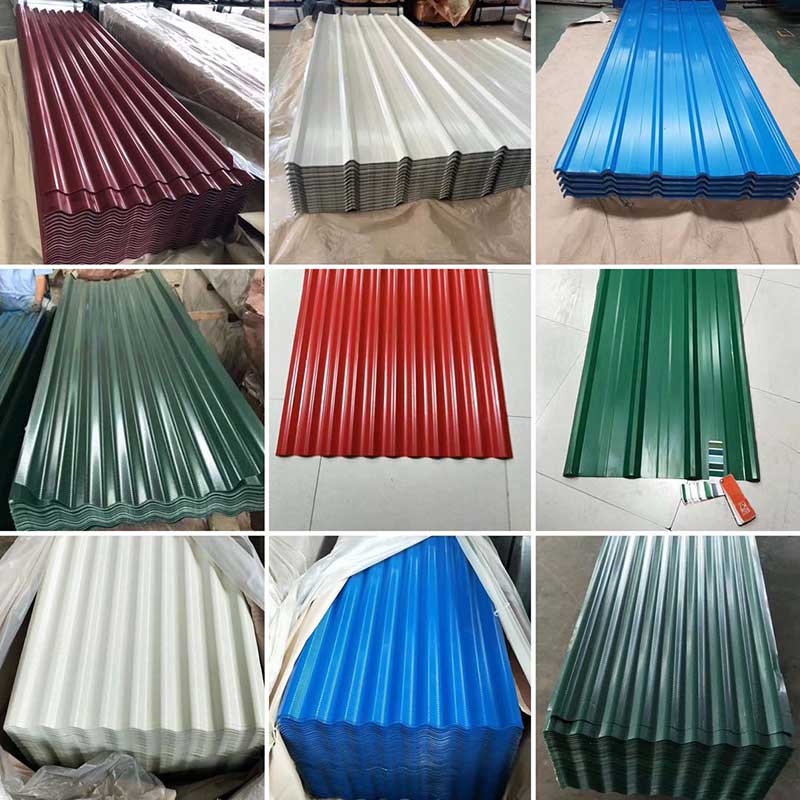

Available in a wide range of profiles: corrugated (sinusoidal/wave), trapezoidal (T-shape), tile profile (Spanish/ Roman tile), and standing seam. Sheets can be supplied cut-to-length with custom punching and accessories. The anti-corrosion coating combined with the zinc/aluminum substrate ensures 15-30 years of service life depending on the coating type and environmental conditions.
| Attribute | Specification |
|---|---|
| Product Name | Anti-Corrosion Weather Resistant Color Coated Profiled Sheet |
| Base Metal Thickness | 0.12mm β 1.5mm |
| Coil Width (before profiling) | 600mm β 1250mm |
| Cover Width (after profiling) | 600mm β 1100mm (depending on profile type) |
| Length | Custom cut, 1m β 18m (transported by special trailer for >12m) |
| Substrate | Hot-Dip Galvanized Steel (GI, Z60-Z275) / Galvalume Steel (GL, AZ50-AZ150) / Aluminum |
| Coating Type | PE (5-10yr) / SMP (10-15yr) / HDP (15-20yr) / PVDF (20-30yr) |
| Top Coat Thickness | 15-35ΞΌm (Front side) |
| Back Coat | Service coat 8-12ΞΌm (Back side, single color) |
| Profile Types | Corrugated (round wave), Trapezoidal (T-rib), Tile profile (Roman/Spanish), Standing seam, IBR, Ribbed |
| Rib Height | 8mm β 80mm (depending on profile) |
| Color | RAL chart, custom colors. Popular: RAL 9002, 9003, 5002, 6005, 8017, 3009, 7016 |
| Standard | ASTM A755/A755M, EN 10169, GB/T 12754, JIS G 3312, AS/NZS 2728 |
| Inspection | Coating thickness, color measurement, gloss test, T-bend, impact resistance, salt spray test, dimensional check (thickness, width, length, rib height, cover width) |

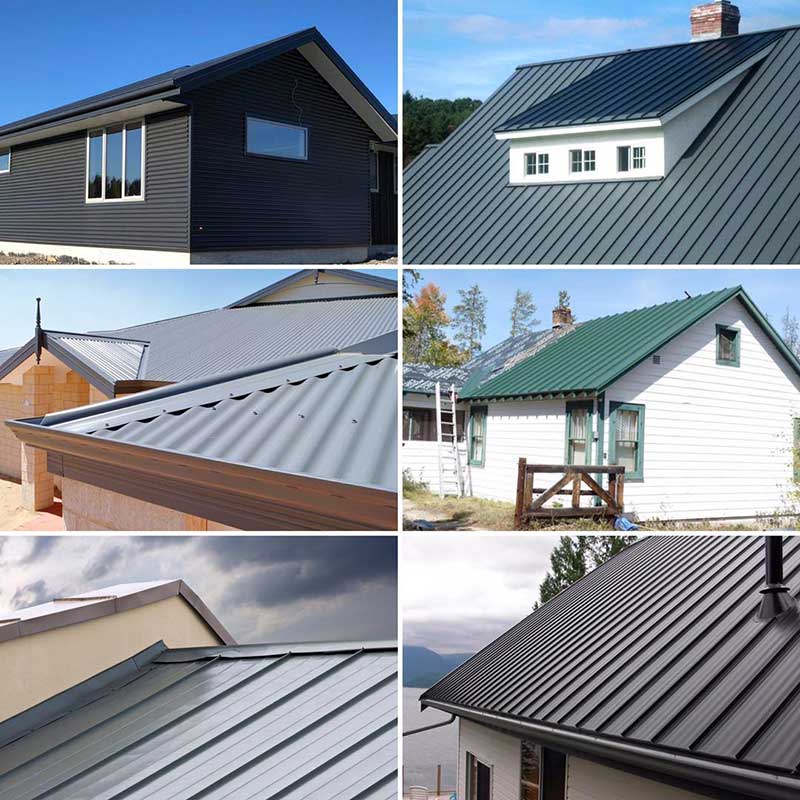

| Application | Industrial roofing, warehouse cladding, agricultural buildings, residential roofing, wall panels, ceiling panels, fences, noise barriers |
| MOQ | 500 Sheets or 5 Tons |
| Supply Ability | 5,000+ Tons/month |
| Delivery Time | 7β20 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Profile | Cover Width (mm) | Rib Height (mm) | Rib Pitch (mm) | Best Application |
|---|---|---|---|---|
| Corrugated (Sinusoidal) | 600-1100 | 8-18 | 76-150 | Residential roofing, agricultural |
| Trapezoidal T-18 | 900-1100 | 18 | 225-275 | Warehouse, industrial roofing |
| Trapezoidal T-35 | 900-1050 | 35 | 210-260 | Commercial, factory buildings |
| Tile Profile (Roman) | 1000-1100 | 25-45 | 180-250 | Residential, villa roofing |
| IBR (Inverted Box Rib) | 686-1060 | 43 | 343 | Heavy industrial, warehouses |
| Standing Seam | 300-500 | 50-80 | 300-500 | Premium architecture, airports |
| Ribbed (Mini Wave) | 900-1000 | 5-8 | 50-70 | Interior ceiling, wall panels |
| Accessory | Material | Specification |
|---|---|---|
| Ridge Cap / Barge Board | Same as sheet | Custom length & angle |
| Gutter / Downspout | GI / Color coated | Standard & custom sizes |
| Flashing / Apron | Same as sheet | Custom bent per requirement |
| Self-drilling Screws | Carbon steel + EPDM washer | #12-24 x 20-150mm, color matched |
| Skylight Sheet | FRP / Polycarbonate | Matching profile, clear/translucent |
| Insulation (optional) | Glass wool / Rock wool / PU foam | 50-150mm thickness |

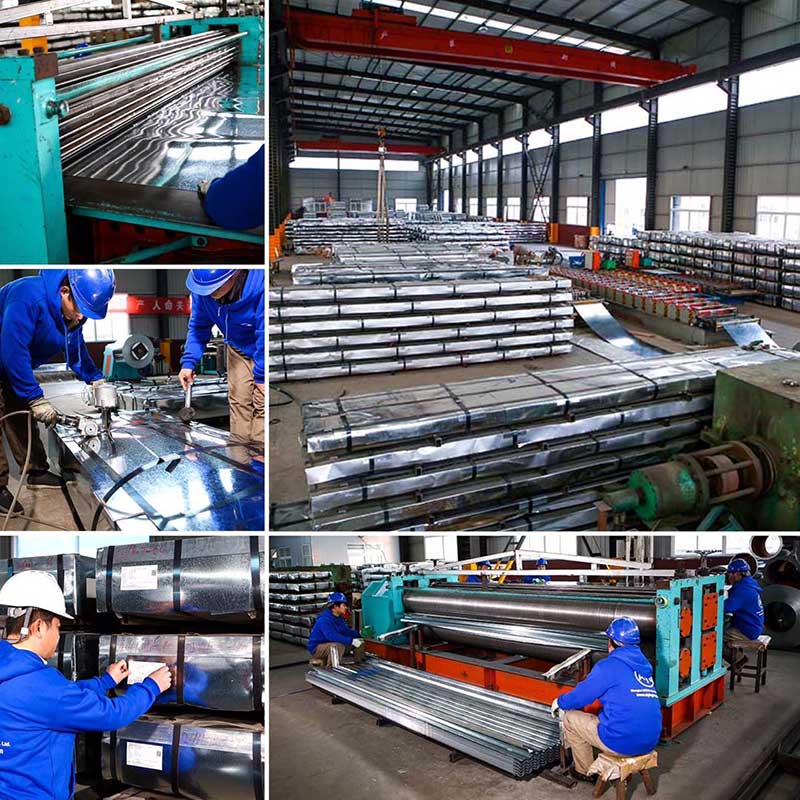

All profiled sheets are manufactured under ISO 9001:2015 certified quality management system. Testing includes: base metal thickness verification, coating thickness (DFT), color measurement (ΞEβ€1.5), gloss test (60Β°), T-bend flexibility, impact resistance, salt spray corrosion test (ASTM B117), dimensional inspection (cover width, rib height, rib pitch, length, straightness). Mill Test Certificates (EN 10204 3.1) available.
Advantages: Lightweight (1/10-1/15 of concrete roofing), easy and fast installation, no welding required, waterproof with proper overlap, wind-resistant when properly fixed, 15-30 year service life, recyclable and environmentally friendly.
Packaging: Sheets stacked flat with PE protective film on top surface. Kraft paper interleaving between sheets for metallic/mirror finishes. Bundled with steel strapping on wooden pallets. Edge and corner protectors applied. Waterproof covering for sea freight. Custom labeling and marking.
Transportation: Container vessel (20ft/40ft) from Tianjin/Qingdao/Shanghai. Sheets up to 5.8m fit in standard 20ft container. 11.8m sheets fit in 40ft container. Extra-long sheets (up to 18m) shipped via break bulk or flat rack container.
