| Product Name | PVDF Color Coated Steel Coil (Fluorocarbon) |
|---|---|
| Thickness | 0.12mm – 2.0mm |
| Width | 600mm – 1500mm |
| Substrate | GI (Galvanized) / GL (Galvalume) / Aluminum |
| Coating | PVDF (Kynar 500® / Hylar 5000®), 25-35μm |
| Standard | ASTM A755, EN 10169, GB/T 12754, AAMA 2605 |
| Grade | DX51D, SGCC, SGLCC, Q195, Q235 |
| MOQ | 5 Tons |

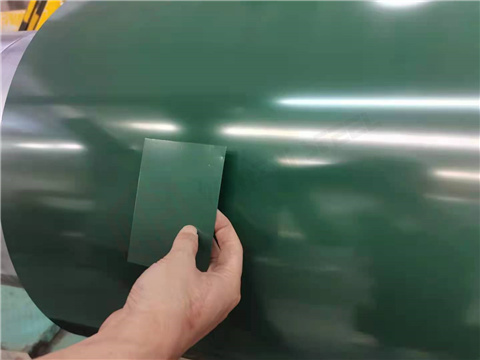

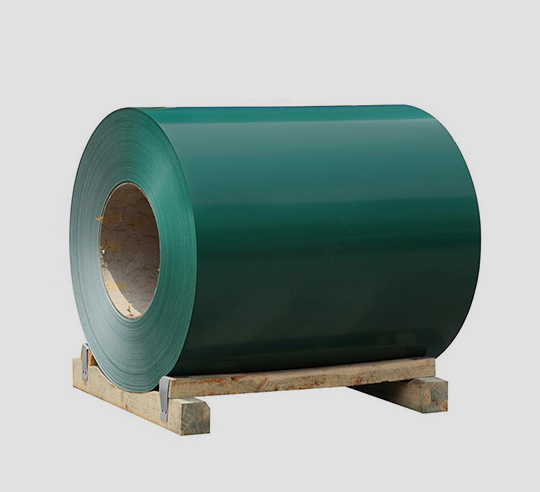

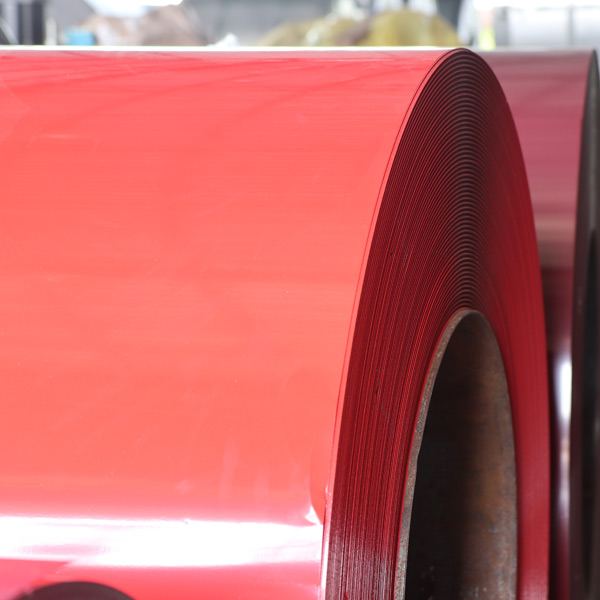

PVDF (Polyvinylidene Fluoride) color coated steel coils represent the premium tier of prepainted steel products. PVDF coating, commonly known as Kynar 500® or Hylar 5000®, contains 70% PVDF resin and 30% acrylic resin, providing exceptional weather resistance, UV stability, and color retention for 20-30 years in outdoor applications.
Unlike standard PE or SMP coatings, PVDF offers superior resistance to chalking, fading, chemical corrosion, and pollution. Ideal for monumental architecture, coastal buildings, airports, stadiums, and high-end industrial facilities where long-term aesthetics and minimal maintenance are critical. Available in a full range of RAL colors with custom matching.
| Attribute | Specification |
|---|---|
| Product Name | PVDF Color Coated Steel Coil (Fluorocarbon Prepainted Coil) |
| Thickness | 0.12mm – 2.0mm |
| Width | 600mm – 1500mm (slit widths available) |
| Substrate Options | Hot-Dip Galvanized (GI) / Galvalume (GL, 55% Al-Zn) / Aluminum |
| Zinc/Alu-Zinc Coating | Z60 – Z275 g/m² (GI) / AZ50 – AZ150 g/m² (GL) |
| Coating System | 2-coat 2-bake (primer + top coat) / 3-coat 3-bake (primer + base + clear) |
| Top Coat | PVDF (Kynar 500® / Hylar 5000®), 25-35μm dry film thickness |
| Primer | Epoxy or Polyurethane primer, 5-10μm |
| Back Coat | Epoxy or Polyester, 8-15μm (single or double coat) |
| Standard | ASTM A755/A755M, EN 10169:2010, GB/T 12754-2019, AAMA 2605 (highest spec), AS/NZS 2728 |
| Base Metal Grade | DX51D+Z/AZ, SGCC, SGLCC, Q195, Q235 |
| Color | Full RAL chart (RAL 1000-9023), custom color matching, metallic finishes available |
| Surface Finish | Smooth (gloss 25-35%), matte (gloss 10-20%), textured, wood grain, stone pattern |
| Coil ID | 508mm / 610mm |
| Coil Weight | 3 – 8 Tons |
| Warranty | 20-30 years color fastness and film integrity (depending on environment) |
| Inspection | Coating thickness (DFT gauge), color measurement (spectrophotometer ΔE≤1.0), gloss test (60°), T-bend flexibility, impact resistance, pencil hardness, MEK rub test, salt spray test |
| Application | Airports, stadiums, high-rise curtain walls, coastal building cladding, monumental architecture, aluminum composite panels, industrial roofing |
| MOQ | 5 Tons per color/spec |
| Supply Ability | 3,000+ Tons/month |
| Delivery Time | 15–30 days (custom colors may require longer lead time) |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Property | PVDF (Fluorocarbon) | HDP (High Durability) | SMP (Silicone Modified) | PE (Polyester) |
|---|---|---|---|---|
| Resin Base | 70% PVDF + 30% Acrylic | Polyester + crosslinker | Polyester + Silicone | Polyester |
| UV Resistance | Excellent | Very Good | Good | Fair |
| Color Retention | 20-30 years | 15-20 years | 10-15 years | 5-10 years |
| Chalk Resistance | Excellent (ΔE≤5 after 10yr) | Good | Moderate | Poor |
| Chemical Resistance | Excellent | Good | Moderate | Fair |
| Flexibility (T-bend) | ≤2T | ≤2T | ≤3T | ≤3T |
| Pencil Hardness | F-HB | HB-F | HB-F | HB-2B |
| Cost Level | ★★★★★ | ★★★★ | ★★★ | ★★ |
| Best Application | Monument, coastal, airport | Industrial, outdoor | Exterior walls | Interior, ceiling |
| Sector | Application | Key Requirement |
|---|---|---|
| Airports & Stations | Roofing, ceiling panels, curtain walls | 20+ year color warranty, fire resistance |
| High-Rise Buildings | Aluminum composite panels, cladding | AAMA 2605 compliance, UV stability |
| Coastal Architecture | Wall panels, roofing sheets | Salt spray resistance, anti-corrosion |
| Stadiums & Arenas | Facade panels, roofing systems | Weather resistance, large span durability |
| Industrial Facilities | Chemical plant cladding, clean rooms | Chemical resistance, easy cleaning |
| Monuments & Museums | Decorative panels, signage | Superior color retention, aesthetic longevity |

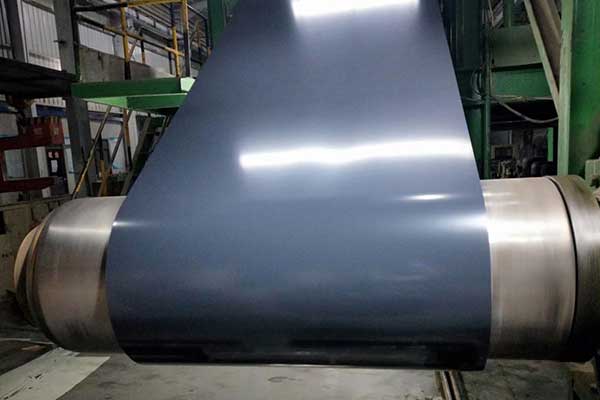

All PVDF coils are manufactured under ISO 9001:2015 certified quality management system on dedicated color coating lines with precise temperature and speed control. Testing includes: dry film thickness measurement (DFT gauge, per ASTM D7091), color measurement (spectrophotometer, ΔE≤1.0 per CIELAB), gloss measurement (60° geometry, per ASTM D523), T-bend flexibility (per ASTM D4145), pencil hardness (per ASTM D3363), MEK solvent resistance (100+ double rubs), impact resistance (per ASTM D2794), and salt spray testing (1000+ hours, per ASTM B117).
Surface Protection: Each coil is protected with a removable PE protective film (50-70μm) on the top surface to prevent scratching during transport and fabrication. Edge protection rings on both coil sides.
Packaging: Waterproof kraft paper + plastic film wrap + circumferential steel strapping (minimum 4 straps). Wooden pallet or steel cradle base. Eye-to-sky or eye-to-wall loading per customer requirement. Maximum 2 coils per 20ft container.
Storage: Store in dry, ventilated warehouse. Avoid outdoor exposure before fabrication. Coils should be used within 6 months for optimal forming performance.
Send us your specifications and receive a quote within 24 hours.
