| Product Name | Excellent Corrosion Resistant Stainless Steel Pipe |
|---|---|
| OD | 6mm β 630mm (1/8" β 24") |
| WT | 0.5mm β 40mm (Sch5S β Sch80S) |
| Length | 5.8m / 6.0m / 11.8m / 12.0m (custom) |
| Process | Seamless / Welded (ERW) / Cold Drawn |
| Standard | ASTM A312/A269/A213, EN 10216/10217, JIS G3459 |
| Grade | 304/304L, 316/316L, 321, 310S, 904L, 2205, 2507 |
| MOQ | 500kg |

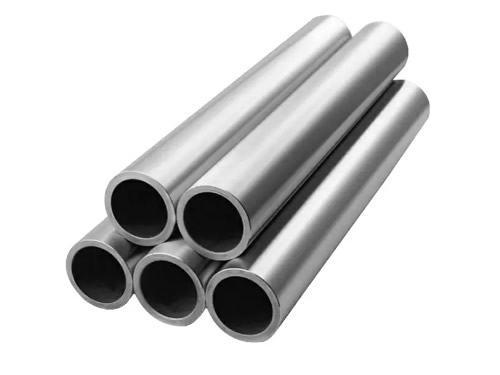

Stainless steel pipes are premium corrosion-resistant tubular products manufactured from high-quality austenitic, duplex, and super duplex stainless steel grades. Available in seamless (pierced from solid billet) and welded (formed from stainless steel strip/plate) constructions, these pipes offer exceptional resistance to oxidation, acids, chlorides, and extreme temperatures.
Grades 304/304L provide excellent general corrosion resistance for most applications. 316/316L with added molybdenum offers superior pitting and crevice corrosion resistance in chloride environments. Duplex grades 2205 and 2507 deliver twice the strength of austenitic grades with outstanding stress corrosion cracking resistance. Widely used in chemical processing, oil & gas, pharmaceutical, food & beverage, marine, and architectural applications.
| Attribute | Specification |
|---|---|
| Product Name | Excellent Corrosion Resistant Stainless Steel Pipe |
| OD Range | 6mm β 630mm (1/8" β 24") |
| Wall Thickness | 0.5mm β 40mm (Sch5S, Sch10S, Sch40S, Sch80S) |
| Length | 5.8m, 6.0m, 11.8m, 12.0m; custom cut to length |
| Manufacturing Process | Seamless (hot finished / cold drawn) / Welded (ERW/TIG/Plasma) with bead conditioning |
| Standard | ASTM A312/A312M (seamless & welded TP304/304L/316/316L), ASTM A269 (instrumentation), ASTM A213 (heat exchanger), ASTM A358 (EFW large dia), EN 10216-5 (seamless), EN 10217-7 (welded), JIS G3459/G3463, GB/T 14976 |
| Grade | TP304, TP304L, TP316, TP316L, TP321, TP321H, TP310S, 904L (UNS N08904), S31803/S32205 (2205 Duplex), S32750 (2507 Super Duplex), S31254 (254 SMO) |
| Surface Finish | Pickled & annealed (mill finish), bright annealed, polished (180#/320#/400#/600#/800# mirror), satin, bead blasted |
| Pipe End | Plain end, bevelled (30Β°-35Β°), threaded (NPT/BSPT), grooved (Victaulic) |
| Delivery Condition | Solution annealed & pickled (standard), bright annealed (BA furnace), cold worked |
| Section Shape | Round (square/rectangular stainless available) |
| Inspection | PMI (Positive Material Identification), hydrostatic pressure test, ultrasonic flaw detection (seamless), eddy current (welded), mechanical testing (tensile, yield, elongation, hardness, flattening, flaring, reverse flattening), intergranular corrosion test (ASTM A262 Practice E), chemical analysis (OES) |
| Application | Chemical & petrochemical process piping, oil & gas (offshore/onshore), heat exchangers & condensers, pharmaceutical & biotech, food & beverage processing, marine & seawater systems, architectural & structural, instrumentation tubing |
| MOQ | 500kg (small orders accepted) |
| Supply Ability | 5,000+ Tons/month |
| Delivery Time | 7β25 days |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Grade | Cr | Ni | Mo | C (max) | PREn | Best Application |
|---|---|---|---|---|---|---|
| 304 | 18-20 | 8-10.5 | β | 0.08 | 18-20 | General purpose, food, architecture |
| 304L | 18-20 | 8-12 | β | 0.03 | 18-20 | Welded equipment, tanks |
| 316L | 16-18 | 10-14 | 2-3 | 0.03 | 24-28 | Marine, chemical, pharmaceutical |
| 321 | 17-19 | 9-12 | β | 0.08 | 17-19 | High temp, heat exchangers |
| 310S | 24-26 | 19-22 | β | 0.08 | 24-26 | Furnace, kiln, 1150Β°C service |
| 904L | 19-23 | 23-28 | 4-5 | 0.02 | 34-43 | Sulfuric acid, seawater, offshore |
| 2205 | 22-23 | 4.5-6.5 | 3-3.5 | 0.03 | 34-36 | Oil & gas, desalination, bridges |
| 2507 | 24-26 | 6-8 | 3-5 | 0.03 | >40 | Severe chloride, seawater, chemical |
All stainless pipes are manufactured under ISO 9001:2015 / PED 2014/68/EU certified quality management system. Testing includes: 100% PMI (Positive Material Identification via XRF or OES), hydrostatic pressure test (1.5Γ design pressure, minimum 10 seconds hold), ultrasonic flaw detection (EN 10246-7/8 for seamless, EN 10246-9 for welded), eddy current inspection (EN 10246-3), mechanical testing (tensile at room temp, yield, elongation, hardness HRB/HRC, flattening to 1/2 OD without cracking, flaring, reverse flattening, bend test), intergranular corrosion test per ASTM A262 Practice E (sensitized at 675Β°C/1hr, boiled in Cu-CuSO4-H2SO4 for 16hrs β no cracking after bend), chemical composition analysis via OES spectrometer, surface roughness measurement (Ra for polished pipes). Mill Test Certificates per EN 10204 3.1 with full chemical and mechanical traceability for each heat number.
Marking: Each pipe marked with: manufacturer logo, material grade (e.g., TP316L), heat number, OD Γ WT, standard (e.g., ASTM A312), and length. Laser engraving or stencil marking available.
Packaging: PVC end caps on both ends, bundled in hexagonal shape with stainless steel or galvanized strapping, wrapped in waterproof tarpaulin or packed in wooden crates (for polished/surface-critical pipes). Each bundle tagged with heat number and specifications. Maximum 2 tons per bundle.
