| Product Name | PE/PVDF Color Coated Aluminum Coil |
|---|---|
| Thickness | 0.08mm – 3.0mm |
| Width | 600mm – 1600mm |
| Alloy | AA1100, AA3003, AA3004, AA5005, AA5052 |
| Temper | H14, H16, H18, H24, H32, O |
| Coating | PE / HDP / PVDF, 15-35μm |
| Standard | ASTM B209, EN 485, GB/T 3880, ECCA T1-T23 |
| MOQ | 3 Tons |

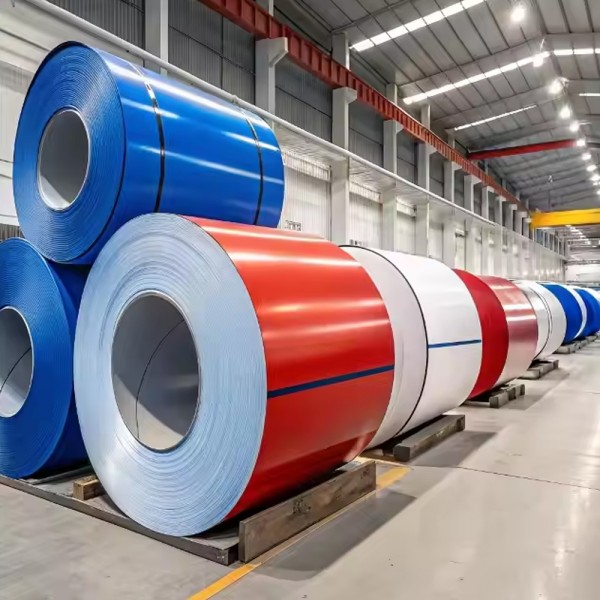

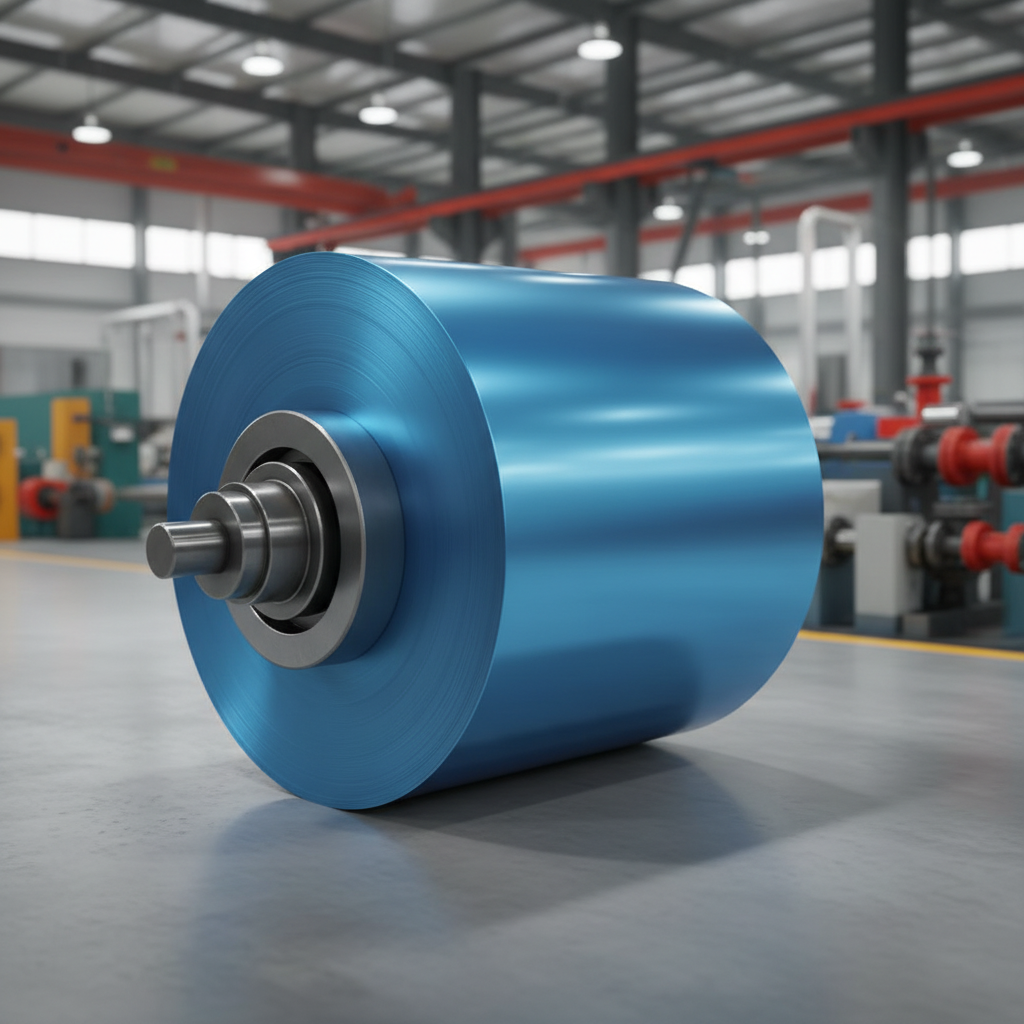

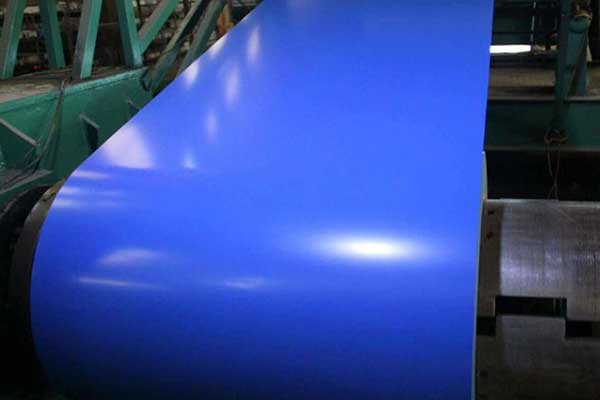

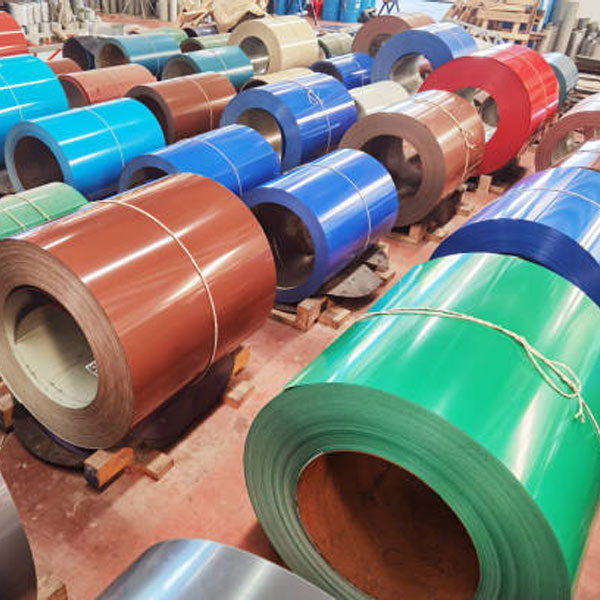

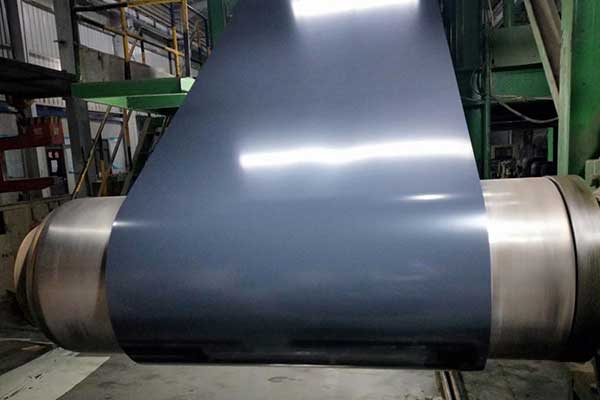

Color coated aluminum coils are produced from premium aluminum alloy substrates (AA1100, AA3003, AA3004, AA5005, AA5052) with PE (Polyester), HDP, or PVDF (Fluorocarbon) coating systems. Aluminum substrate offers inherent advantages over steel: lightweight (1/3 the weight of steel), natural corrosion resistance (no rust), excellent thermal and electrical conductivity, and superior formability for complex profiles.
Widely used in architectural cladding, aluminum composite panels (ACP), ceiling systems, signage, rain gutters, and roofing applications. The coating provides additional weather protection, color options, and surface durability while the aluminum core ensures decades of maintenance-free performance. Custom colors, textured finishes, wood grain, and stone patterns available.
| Attribute | Specification |
|---|---|
| Product Name | PE/PVDF Color Coated Aluminum Coil |
| Thickness | 0.08mm – 3.0mm (tolerance ±0.02mm) |
| Width | 600mm – 1600mm (slit widths available) |
| Aluminum Alloy | AA1100 (99% pure), AA3003 (Mn alloy), AA3004, AA5005 (Mg alloy), AA5052 (high strength) |
| Temper | H14 (1/2 hard), H16 (3/4 hard), H18 (full hard), H24, H32, O (soft/annealed) |
| Coating System | Single coat (15-20μm) / Double coat (primer 5-8μm + top coat 20-30μm) |
| Top Coat Options | PE (Polyester), HDP (High Durability Polyester), PVDF (Kynar 500®) |
| Back Coat | Service coat (5-8μm) or wash coat (translucent) |
| Standard | ASTM B209/B209M, EN 485-2, EN 1396, GB/T 3880.1/2-2012, ECCA T1-T23 |
| Color | RAL chart, custom matching, metallic, wood grain, stone, brushed, mirror finish |
| Coil ID | 150mm / 200mm / 300mm / 400mm / 500mm (per requirement) |
| Coil Weight | 1 – 4 Tons (depending on thickness and width) |
| Protective Film | PE film 50-70μm, blue/white/transparent, applied on top surface |
| Inspection | Coating thickness (DFT), color measurement (ΔE≤1.0), gloss test (60°), T-bend flexibility, impact resistance, pencil hardness, MEK rub test, salt spray (≥1000h for PVDF) |
| Application | Aluminum composite panels (ACP), architectural cladding, ceiling panels, signage & display, rain gutters, roofing, insulation panels, trailer bodies, appliance panels |
| MOQ | 3 Tons per color/spec |
| Supply Ability | 3,000+ Tons/month |
| Delivery Time | 10–25 days (custom colors may require longer) |
| Price Term | FOB / CIF / CFR |
| Payment | T/T (30% advance, 70% against B/L), L/C at sight |
| Alloy | Main Element | Tensile (MPa) | Density | Corrosion Resistance | Best For |
|---|---|---|---|---|---|
| AA1100 | 99% Pure Al | 90-165 | 2.71 | Excellent | Signage, decorative, chemical equipment |
| AA3003 | Mn 1.0-1.5% | 130-200 | 2.73 | Very Good | ACP, roofing, general cladding |
| AA3004 | Mn 1.0-1.5%, Mg 0.8-1.3% | 180-260 | 2.72 | Very Good | ACP, higher strength cladding |
| AA5005 | Mg 0.5-1.1% | 145-220 | 2.70 | Excellent | Architectural, marine, coastal |
| AA5052 | Mg 2.2-2.8%, Cr | 230-290 | 2.68 | Excellent | Marine, high-strength structural |
| Sector | Application |
|---|---|
| Architecture | Aluminum composite panels (ACP), curtain wall cladding, column covers, soffit panels |
| Interior Decoration | Ceiling tiles, wall panels, partition systems, elevator interiors |
| Signage & Display | Billboards, shop signs, display boards, exhibition stands |
| Roofing & Gutter | Standing seam roofing, rain gutters, downspouts, flashing |
| Transportation | Trailer side panels, RV exteriors, truck bodies, container panels |
| Home Appliances | Refrigerator panels, air conditioner housings, range hood covers |
All aluminum coils are manufactured under ISO 9001:2015 certified quality management system. Testing includes: DFT coating thickness (ASTM D7091), color measurement (ΔE≤1.0), gloss level (60° ASTM D523), T-bend flexibility, impact resistance, pencil hardness, MEK rub test, salt spray test (ASTM B117), humidity resistance, and accelerated weathering (QUV). Mill Test Certificates per EN 10204 3.1 provided.
Surface Protection: PE protective film (50-70μm) applied to top surface. Interleaving paper for mirror/metallic finishes. Edge protection rings on both coil sides.
Packaging: Coils wrapped with anti-rust paper, plastic film, secured with steel strapping. Wooden pallet base. Eye-to-sky loading. Maximum 4 tons per coil. 20ft container: up to 20 tons of aluminum coils.
Storage: Store in dry, ventilated warehouse away from direct sunlight and moisture. Keep original packaging intact until use. Use within 6 months for optimal forming and coating adhesion.
